industrydif.com Alternating current (AC) systems have been the backbone of electrical power distribution, offering efficient long-distance transmission and compatibility with conventional transformers. Solid-state transformers (SSTs) enhance this traditional framework by using semiconductor devices to provide voltage regulation, improved efficiency, and smart grid integration capabilities. SSTs enable faster response to load changes and support renewable energy sources, marking a significant advancement over conventional AC transformers in modern electrical networks.
Table of Comparison
| Feature | Alternating Current (AC) | Solid-State Transformer (SST) |
|---|---|---|
| Definition | Electric current that reverses direction periodically | Advanced transformer using power electronics to convert and regulate voltage |
| Voltage Conversion | Uses electromagnetic induction for step-up/step-down voltage | Uses semiconductor devices for voltage conversion and control |
| Efficiency | Typically 95-98% | Can exceed 98% with reduced losses |
| Size & Weight | Large and heavy due to magnetic core and coils | Compact and lightweight owing to solid-state components |
| Power Quality | Limited control; affected by harmonics and voltage fluctuations | Improves power quality with active filtering and voltage regulation |
| Reliability & Maintenance | Robust with low maintenance but susceptible to fault from mechanical wear | Higher reliability with solid-state parts but sensitive to thermal stress |
| Application | Widely used in power distribution and transmission | Emerging use in smart grids, renewable energy integration, and EV charging |
| Cost | Lower initial cost, mature technology | Higher initial cost due to advanced technology but potential lifecycle savings |
Introduction to Alternating Current (AC)
Alternating Current (AC) is an electric current that periodically reverses direction, enabling efficient power transmission over long distances. Unlike Direct Current (DC), AC voltage can be easily transformed using transformers to different levels, optimizing grid distribution and reducing energy loss. Solid-State Transformers (SSTs) represent an advanced evolution of traditional transformers by integrating power electronics to enhance voltage regulation and grid stability in modern electrical networks.
Fundamentals of Solid-State Transformers (SST)
Solid-State Transformers (SSTs) utilize power semiconductor devices to convert AC to DC and back to a controlled AC output, enabling enhanced voltage regulation and power quality over traditional alternating current transformers. SSTs integrate high-frequency switching, which reduces size and weight while providing functions such as voltage adaptation, reactive power compensation, and grid interfacing. Advanced SST designs incorporate digital control and modular architectures, optimizing efficiency and enabling smart grid applications through real-time monitoring and fault management.
Key Differences Between AC Transformers and SST
Alternating Current (AC) transformers primarily function by transferring energy through magnetic induction with alternating voltage and current, whereas Solid-State Transformers (SST) employ power electronics to convert and regulate electricity with enhanced control and efficiency. AC transformers are limited in adaptability and size due to their electromagnetic core, while SSTs offer compactness, bidirectional power flow, and facilitate integration with DC grids and renewable energy sources. SST technology supports dynamic voltage regulation, fault isolation, and grid communication capabilities, making it advantageous for smart grid applications compared to traditional AC transformers.
Efficiency Comparison: AC vs Solid-State Transformers
Solid-state transformers (SSTs) demonstrate higher overall efficiency compared to traditional alternating current (AC) transformers, primarily due to reduced core losses and superior power management capabilities. SSTs utilize advanced semiconductor components to enable dynamic voltage regulation and bidirectional power flow, enhancing energy savings in smart grid applications. While AC transformers exhibit typical efficiencies around 98-99%, SSTs can surpass these levels by minimizing iron losses and improving load adaptability.
Applications in Modern Power Grids
Alternating Current (AC) remains the backbone of modern power grids, efficiently transmitting electricity over long distances and powering residential, commercial, and industrial loads. Solid-State Transformers (SSTs) enhance grid flexibility by providing voltage regulation, bidirectional power flow, and integration with renewable energy sources and electric vehicle charging stations. The use of SSTs in smart grids supports improved energy management, reduced losses, and facilitates the transition toward decentralized and sustainable power systems.
Advantages of Solid-State Transformers
Solid-State Transformers (SSTs) offer enhanced efficiency and precise voltage regulation compared to traditional Alternating Current (AC) transformers, enabling better power quality and reduced energy losses. SSTs provide compact size and lighter weight, facilitating easier installation and integration into smart grids with advanced monitoring and control capabilities. Their ability to handle bidirectional power flow supports renewable energy integration and grid resilience, making them a critical component for modern electricity distribution systems.
Limitations of Traditional AC Transformers
Traditional AC transformers face limitations such as bulkiness, heavy weight, and inefficiency at varying load conditions, which hinder their adaptability in modern electrical grids. Their reliance on magnetic cores generates significant hysteresis and eddy current losses, leading to reduced energy efficiency. Furthermore, these transformers lack the capability to provide voltage regulation and power quality improvement, challenges addressed by emerging solid-state transformer technologies.
Impact on Energy Transmission and Distribution
Alternating current (AC) systems have long dominated energy transmission and distribution due to their efficiency over long distances and ease of voltage transformation using transformers. Solid-state transformers (SSTs) enhance this process by integrating power electronics to offer higher voltage regulation, improved power quality, and reduced losses in smart grid applications. SSTs facilitate distributed energy resources and bidirectional power flow, enabling more adaptive and resilient electrical grids compared to traditional AC transformers.
Safety and Reliability Considerations
Alternating Current (AC) systems have established safety protocols and proven reliability through decades of application, featuring robust insulation and standardized grounding techniques that minimize electrical hazards. Solid-State Transformers (SSTs) offer enhanced safety with advanced fault detection, rapid isolation capabilities, and reduced physical size that limits exposure to high voltages, improving system protection. Reliability in SSTs is driven by semiconductor components' precision control, although they require effective thermal management and sophisticated design to mitigate failure risks in power electronics.
Future Trends in Transformer Technology
Alternating Current (AC) systems have been the backbone of electrical power distribution for over a century, but Solid-State Transformers (SSTs) are poised to revolutionize future transformer technology with enhanced efficiency, compact size, and superior voltage regulation capabilities. SSTs utilize power semiconductor devices to enable bidirectional energy flow, improved grid integration for renewable energy sources, and real-time monitoring through digital communication interfaces. As smart grids evolve, the adoption of SSTs is expected to increase significantly, offering advanced features like dynamic load management and fault isolation that traditional AC transformers cannot provide.
Related Important Terms
Bidirectional Power Flow
Alternating current (AC) systems traditionally enable bidirectional power flow through transformers, facilitating efficient energy exchange between the grid and distributed energy resources. Solid-state transformers (SSTs) enhance this capability by using power electronics to precisely control and convert bidirectional power flow, improving grid flexibility and integrating renewable energy sources more effectively.
Soft-Switching Topologies
Soft-switching topologies in Alternating Current (AC) systems enhance efficiency by minimizing switching losses and electromagnetic interference, which is critical in Solid-State Transformer (SST) designs for improved power quality and compactness. SSTs utilizing soft-switching techniques like zero-voltage switching (ZVS) and zero-current switching (ZCS) achieve higher frequency operation, reducing size and weight compared to traditional AC transformers while enabling advanced grid integration and dynamic voltage regulation.
Modular Multilevel Converter (MMC)
Modular Multilevel Converter (MMC) technology significantly enhances the efficiency and scalability of solid-state transformers by enabling high-voltage, high-power alternating current (AC) conversion with reduced harmonic distortion and improved modularity. MMC-based solid-state transformers offer superior control and flexibility compared to traditional AC transformers, facilitating dynamic voltage regulation and fault isolation in modern electrical grids.
Galvanic Isolation Elimination
Alternating Current (AC) systems rely on traditional transformers to provide galvanic isolation between input and output circuits, which enhances safety but increases size and weight. Solid-State Transformers (SSTs) eliminate galvanic isolation by using power electronics, enabling more compact designs with improved efficiency and faster response for modern smart grid applications.
High-Frequency AC Link
High-frequency AC links in solid-state transformers enable efficient voltage conversion and isolation by operating at frequencies significantly above the standard 50-60 Hz of traditional alternating current systems. This high-frequency operation reduces transformer size and losses, enhances power density, and improves the dynamic response of power distribution networks.
Wide Bandgap Semiconductor Integration
Wide bandgap semiconductor integration in solid-state transformers enhances efficiency and thermal performance compared to traditional alternating current transformers, enabling higher power density and faster switching speeds. These materials, such as silicon carbide and gallium nitride, allow solid-state transformers to achieve superior voltage regulation and compact design, transforming AC power management in modern electrical grids.
Multiport Solid-State Transformer
Multiport Solid-State Transformers (SSTs) represent an advanced evolution in power electronics, enabling efficient AC to DC conversion and facilitating direct interfacing with multiple energy sources and loads, such as renewable generation, energy storage, and electric vehicles. These transformers enhance grid flexibility, improve power quality, and reduce losses compared to traditional Alternating Current (AC) transformers by integrating power conversion and multiport energy management within a compact solid-state design.
Real-Time Reactive Power Compensation
Alternating Current (AC) systems traditionally rely on mechanical transformers that lack dynamic control for reactive power, resulting in inefficiencies during load variations. Solid-State Transformers (SSTs) enable real-time reactive power compensation through fast semiconductor switching, enhancing voltage stability and reducing power losses in modern smart grids.
Smart Grid Interoperability
Alternating Current (AC) systems traditionally dominate power distribution but face limitations in smart grid interoperability due to less flexibility in real-time control and communication. Solid-State Transformers (SSTs) enable enhanced smart grid interoperability by integrating power electronics and digital controls, allowing bidirectional energy flow, real-time monitoring, and seamless integration of distributed energy resources.
Hybrid AC/DC Distribution
Hybrid AC/DC distribution integrates alternating current (AC) and solid-state transformer (SST) technologies to enhance grid flexibility, efficiency, and power quality. SSTs enable seamless AC/DC conversion with advanced control, reducing energy losses and supporting renewable energy integration in modern electrical networks.

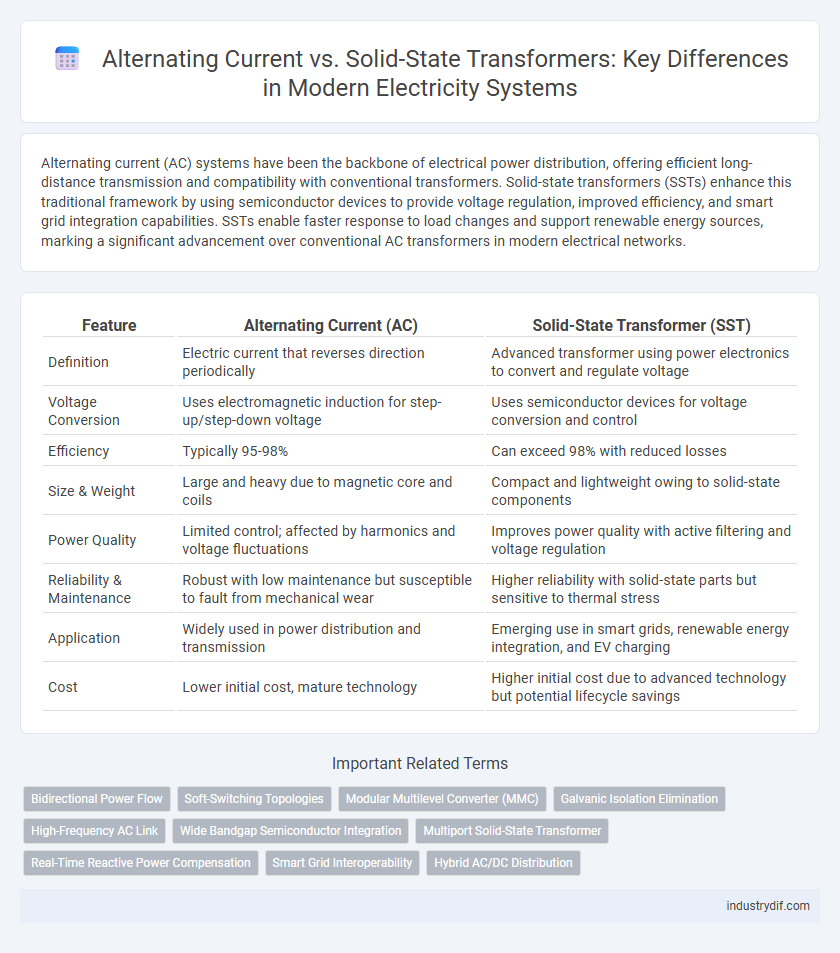

Alternating Current vs Solid-State Transformer Infographic
