industrydif.com Blackout refers to a complete loss of electrical power in a specific area due to faults or grid failures, causing widespread disruption. Islanding operation occurs when a distributed generator continues to supply power independently, isolated from the main grid, maintaining local electricity during grid outages. Effective detection and management of islanding are crucial to ensure safety and system stability during blackouts.
Table of Comparison
| Feature | Blackout | Islanding Operation |
|---|---|---|
| Definition | Complete loss of power supply to an area. | Local generation continues to power a section despite grid disconnection. |
| Cause | Grid failure, faults, or wide-area outages. | Intentional or unintentional grid isolation with active local generation. |
| Power Source | No power supply from grid or local generation. | Local distributed energy resources (DERs) supply power. |
| Impact on Consumers | Complete loss of electricity. | Continuous electricity supply within the islanded zone. |
| Safety Concerns | Risk of hazardous conditions during outages. | Requires protection schemes to prevent back-feed to grid. |
| Duration | Until grid restoration. | Operates until grid reconnection or local generation stops. |
| Examples | Wide regional blackouts due to storm or fault. | Microgrids operating independently during grid faults. |
Definition of Blackout and Islanding Operation
A blackout is a complete loss of electrical power supply in a specific area caused by faults, system failures, or overloads, resulting in an interruption of normal electricity distribution. Islanding operation occurs when a distributed generation source, such as a solar or wind system, continues to power a localized section of the grid independently, even though the main utility supply is disconnected. These phenomena affect grid stability and require distinct control strategies for ensuring power reliability and safety.
Key Differences Between Blackout and Islanding
Blackout refers to a complete loss of power supply in a specific area due to faults or transmission failures, whereas islanding operation occurs when a distributed generation system continues to supply power to a localized section of the grid independently. Blackouts cause widespread disruption and require grid restoration efforts, while islanding allows for continued power availability despite grid disconnection, enhancing grid resilience and reliability. Key differences include the scope of power loss, grid connectivity status, and operational impact on both consumers and utility providers.
Causes of Blackout in Power Systems
Blackouts in power systems primarily result from equipment failures, such as transformer or transmission line faults, and sudden imbalances between electricity supply and demand. Natural events like storms, lightning strikes, and extreme weather conditions also trigger large-scale outages by damaging infrastructure. Human errors, cyber-attacks, and inadequate grid maintenance exacerbate the risk of widespread power disruptions during blackout events.
Triggers for Islanding Operation
Islanding operation is triggered when a portion of the power grid becomes electrically isolated yet remains energized by distributed energy resources such as solar panels or wind turbines. Common triggers include faults on the main grid, loss of utility power, or intentional grid sectionalizing during maintenance. Detecting these conditions promptly ensures safety and prevents damage to equipment during the islanding period.
Impacts of Blackout on Grid Reliability
Blackouts cause significant disruptions in grid reliability by halting power supply across extensive areas, leading to system instability and increased risk of cascading failures. The sudden loss of load during blackouts challenges grid operators' ability to maintain frequency and voltage control, often resulting in prolonged recovery times. In contrast, islanding operation isolates portions of the grid to maintain localized power, minimizing widespread outages and enhancing resilience.
Islanding Operation: Safety and Stability Measures
Islanding operation occurs when a distributed generator continues to power a section of the grid after disconnection from the main utility, necessitating advanced safety measures to prevent hazards to utility workers and equipment. Protective relays and anti-islanding detection techniques, such as voltage and frequency monitoring, are critical for timely islanding detection and seamless disconnection to maintain grid stability. Implementing robust control strategies and coordinated protection schemes ensures stable operation, avoids unintentional islanding, and mitigates risks during power restoration.
Detection Methods: Blackout vs Islanding
Blackout detection primarily relies on system-wide monitoring tools such as phasor measurement units (PMUs) and supervisory control and data acquisition (SCADA) systems to identify total power loss in the grid. Islanding detection methods focus on local algorithms like active frequency drift, voltage change detection, and rate of change of frequency (ROCOF) relays to determine if a distributed generation unit is operating independently from the main grid. Advanced detection approaches integrate both passive and active techniques to improve reliability and minimize false positives in blackout and islanding identification.
Restoration Processes After Blackout and Islanding
Restoration processes after a blackout involve systematically re-energizing the power grid starting from small generation units and isolated sections to ensure stability and prevent equipment damage. In contrast, islanding restoration requires maintaining power within isolated microgrids until safe reconnection to the main grid is possible, using coordinated control of distributed energy resources. Both processes prioritize load balancing, synchronization, and gradual voltage and frequency stabilization to minimize outage duration and maintain grid reliability.
Regulatory Standards Governing Blackout and Islanding
Regulatory standards such as IEEE 1547 and UL 1741 define strict criteria for detecting and responding to islanding conditions to ensure safety and grid stability. Blackout protocols are governed by NERC standards that mandate coordinated system restoration and real-time monitoring to prevent widespread outages. Compliance with these regulations ensures reliable operation and minimizes risks associated with both blackout events and unintentional islanding in distributed generation systems.
Prevention Strategies for Blackouts and Unintentional Islanding
Prevention strategies for blackouts involve real-time grid monitoring and automated load shedding to maintain system stability during faults or demand surges. Unintentional islanding prevention relies on anti-islanding detection methods, including passive, active, and communication-based techniques, to swiftly disconnect distributed generation sources when grid supply is interrupted. Implementing robust protection coordination and advanced inverter controls enhances reliability and minimizes risks associated with power outages and isolated grid conditions.
Related Important Terms
Grid Separation Protocols
Grid separation protocols ensure controlled transition during blackouts by isolating faulted sections to prevent widespread outages, whereas islanding operation maintains power continuity by allowing portions of the grid to operate independently when disconnected from the main supply. Effective implementation of these protocols enhances grid resilience, optimizes load balancing, and supports rapid restoration of power service.
Intentional Islanding
Intentional islanding is a controlled process where a portion of the electrical grid is deliberately isolated to maintain power supply during widespread outages, enhancing system reliability and stability. This method prevents full blackouts by enabling selective sections of the grid to operate independently, supporting critical loads and facilitating faster restoration.
Black Start Capability
Black start capability enables power plants to restart independently after a blackout without relying on the external grid, a critical function absent in islanding operation which isolates a grid segment during faults but cannot initiate a system restart. Effective black start procedures involve predetermined generation units equipped for autonomous startup, ensuring rapid restoration of electricity supply following total grid outages.
Microgrid Autonomy
Microgrid autonomy is enhanced by islanding operation, allowing the microgrid to operate independently from the main grid during power outages, unlike a blackout where the entire system loses power. This capability ensures continuous local power supply, improving resilience and reliability in distributed energy systems.
Resilient Power Nodes
Resilient Power Nodes enhance grid stability by enabling seamless transition between blackout and islanding operation, maintaining continuous power supply during outages. These nodes isolate from the main grid during faults to operate autonomously, minimizing downtime and supporting critical infrastructure reliability.
Islanding Detection Algorithms
Islanding detection algorithms play a critical role in distinguishing between intentional islanding operations and unintentional blackouts by monitoring voltage, frequency, and phase angle variations in distributed generation systems. Techniques such as passive methods analyze power parameters, while active methods inject signals to promptly identify islanding conditions, ensuring grid stability and safety.
Demand Response Islanding
Demand Response Islanding enables localized power grids to operate autonomously during blackouts by dynamically adjusting load and generation to maintain stability and prevent widespread outages. This approach enhances grid resilience by leveraging real-time consumer load control and distributed energy resources to balance supply and demand within the islanded segment.
Unintentional Blackout Risk
Unintentional blackout risk increases significantly during islanding operation due to the failure of grid synchronization and inadequate load-generation balance, leading to voltage and frequency instability. Reliable detection mechanisms and rapid disconnection protocols are critical to mitigate the risk of cascading outages and ensure grid safety.
Seamless Resynchronization
Seamless resynchronization in blackout and islanding operation ensures uninterrupted power restoration by precisely matching voltage, frequency, and phase angle before reconnecting to the grid, minimizing transient disturbances. Advanced control systems and real-time monitoring facilitate smooth transition from islanded mode back to utility supply, enhancing grid stability and reliability.
Distributed Energy Islands
Distributed energy islands enable localized power generation and consumption during grid blackouts, ensuring critical loads remain powered by isolating from the main grid. Islanding operation maintains grid stability by dynamically transitioning distributed energy resources to operate autonomously within defined microgrids.

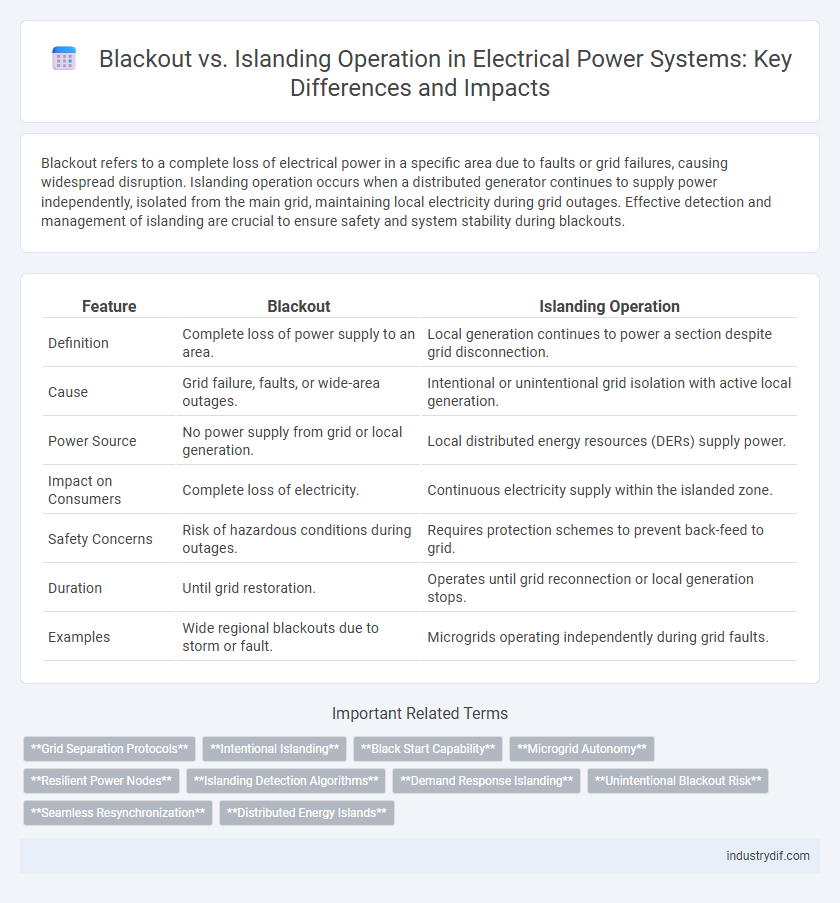

Blackout vs Islanding Operation Infographic
