industrydif.com Grid stability depends on maintaining a balance between power supply and demand, where frequency fluctuations must be minimized to prevent outages. Synthetic inertia, provided by power electronics and energy storage systems, mimics the inertia of traditional spinning generators by rapidly injecting or absorbing power during frequency disturbances. Integrating synthetic inertia enhances grid resilience, especially in networks with high penetration of renewable energy sources that lack inherent mechanical inertia.
Table of Comparison
| Feature | Grid Stability | Synthetic Inertia |
|---|---|---|
| Definition | Overall reliability of the electrical grid to maintain steady voltage and frequency. | Technology that mimics mechanical inertia using power electronics to support grid frequency. |
| Function | Maintains voltage, frequency, and power flow balance across the network. | Provides fast frequency response during sudden power changes or disturbances. |
| Source | Conventional power plants, grid management systems. | Renewable energy systems, battery storage with inverter controls. |
| Response Time | Slower, relies on physical rotating masses and control systems. | Instantaneous to milliseconds via electronic controls. |
| Importance | Crucial for preventing blackouts and ensuring consistent power supply. | Essential for integrating renewables without traditional inertia. |
| Challenges | Decreasing inertia due to renewable penetration reduces stability. | Complex control, limited duration of support, depends on energy availability. |
Understanding Grid Stability in Modern Power Systems
Grid stability in modern power systems hinges on maintaining consistent frequency and voltage levels despite fluctuations in electricity supply and demand. Synthetic inertia, provided by advanced power electronic devices such as wind turbines and battery storage systems, replicates the inertial response of traditional synchronous generators to rapidly counteract frequency deviations. Integrating synthetic inertia enhances grid resilience and supports the seamless incorporation of renewable energy sources while ensuring operational reliability.
Introduction to Synthetic Inertia: Definition and Principles
Synthetic inertia refers to the emulation of traditional mechanical inertia by power electronic converters in renewable energy systems, helping to stabilize grid frequency during sudden disturbances. Unlike conventional inertia provided by spinning masses in fossil-fueled generators, synthetic inertia uses fast control algorithms to inject or absorb active power dynamically. This innovative approach enhances grid stability by compensating for the reduced rotational inertia in modern low-carbon power systems.
The Role of Conventional Inertia in Electricity Grids
Conventional inertia provided by large rotating masses in synchronous generators stabilizes electricity grids by resisting frequency fluctuations during sudden load changes. This mechanical inertia acts as an immediate buffer, maintaining grid frequency within safe limits and preventing blackouts. Synthetic inertia, while emerging as a valuable tool, relies on power electronics and control algorithms to mimic this stabilizing effect but lacks the instantaneous physical response inherent to conventional inertia.
Challenges of Maintaining Grid Stability with Renewable Integration
Maintaining grid stability with increased renewable integration presents challenges like managing frequency deviations due to the intermittent nature of solar and wind power. Synthetic inertia, provided by power electronics in inverter-based resources, helps mitigate rapid frequency changes but lacks the instantaneous response of traditional synchronous generators. Ensuring reliability requires advanced grid control strategies and enhanced measurement technologies to balance supply-demand fluctuations in real time.
Comparing Conventional Inertia vs. Synthetic Inertia
Conventional inertia, provided by rotating masses in synchronous generators, naturally stabilizes the grid by resisting frequency deviations through kinetic energy release during disturbances. Synthetic inertia, generated by power electronic devices and controlled algorithms in inverter-based resources, mimics this response by rapidly injecting power but lacks the continuous energy reservoir of mechanical systems. While synthetic inertia enhances grid stability in high-renewable scenarios, its response time and energy limitations contrast with the inherent robustness of conventional inertia in maintaining frequency stability.
Technologies Enabling Synthetic Inertia in Power Systems
Technologies enabling synthetic inertia in power systems include advanced power electronics, energy storage systems like batteries, and fast-responding inverter controls that mimic the inertial response of traditional synchronous generators. Grid-forming inverters play a crucial role in maintaining voltage and frequency stability by dynamically adjusting power output during disturbances. Integration of these technologies enhances grid stability by providing rapid frequency support, compensating for reduced mechanical inertia in renewable energy sources.
Impact of Synthetic Inertia on Frequency Regulation
Synthetic inertia enhances grid stability by providing rapid frequency response through inverter-controlled renewable energy sources, mimicking the inertial response of traditional synchronous generators. This dynamic support accelerates frequency regulation after disturbances, reducing frequency nadirs and improving overall system resilience. Effective integration of synthetic inertia helps maintain grid frequency within tight operational limits, crucial for preventing blackouts and ensuring reliable electricity supply.
Deployment Strategies for Synthetic Inertia Solutions
Deployment strategies for synthetic inertia solutions prioritize integration within existing grid infrastructure to enhance frequency regulation and prevent instability caused by renewable energy fluctuations. Strategic placement of energy storage systems and advanced inverter technologies at critical nodes ensures rapid response to frequency deviations, optimizing grid resilience. Combining synthetic inertia with real-time grid monitoring and adaptive control algorithms maximizes stability while supporting increasing renewable penetration.
Case Studies: Grid Stability Achievements with Synthetic Inertia
Case studies reveal that synthetic inertia significantly enhances grid stability by rapidly compensating for frequency deviations in high-renewable energy systems. The Hornsdale Power Reserve in Australia demonstrated improved frequency response and reduced inertia-related disturbances after integrating synthetic inertia from battery energy storage. Similarly, the UK's grid pilot projects reported a marked reduction in frequency nadir and improved system resilience, validating synthetic inertia as a critical tool for maintaining stable grid operations amid increasing renewable penetration.
Future Trends and Innovations in Grid Stability Management
Future trends in grid stability management emphasize the integration of synthetic inertia to compensate for the decreasing mechanical inertia from traditional generators. Advanced power electronics and real-time control algorithms enable synthetic inertia to respond rapidly to frequency deviations, enhancing grid resilience amid high renewable penetration. Innovations such as grid-forming inverters and machine learning predictive analytics further optimize stability, paving the way for more reliable, flexible electricity networks.
Related Important Terms
Fast Frequency Response (FFR)
Fast Frequency Response (FFR) enhances grid stability by rapidly counteracting frequency deviations through the injection or absorption of active power, supplementing traditional synthetic inertia from synchronous generators. Integrating FFR technologies, such as battery energy storage systems and inverter-based resources, effectively mitigates frequency nadirs and supports grid resilience amid high renewable energy penetration.
Grid-Forming Inverters
Grid-forming inverters enhance grid stability by providing synthetic inertia through fast, autonomous response to frequency fluctuations, emulating the rotational inertia of traditional synchronous generators. Their ability to stabilize voltage and frequency in weak or islanded grids is critical for integrating high levels of renewable energy sources and ensuring resilient power system operation.
Virtual Synchronous Machines (VSM)
Virtual Synchronous Machines (VSM) enhance grid stability by emulating the inertial response of traditional synchronous generators, providing synthetic inertia to balance fluctuations in frequency and voltage. By dynamically adjusting power output based on grid conditions, VSMs mitigate the risks of instability caused by high penetration of renewable energy sources lacking physical inertia.
Inertia Emulation
Inertia emulation through synthetic inertia plays a crucial role in enhancing grid stability by replicating the natural rotational inertia of conventional generators, thereby mitigating frequency deviations during sudden disturbances. Advanced inverter-based resources provide rapid response to frequency changes, ensuring seamless integration of renewable energy sources while maintaining system reliability and preventing blackouts.
Synthetic Inertia Contribution
Synthetic inertia enhances grid stability by rapidly injecting power during frequency deviations, mimicking the inertial response of traditional generators. This dynamic support mitigates frequency fluctuations, reduces the risk of blackouts, and complements renewable energy integration in modern power systems.
Dynamic Frequency Control
Dynamic frequency control enhances grid stability by rapidly adjusting power output to counteract frequency deviations caused by sudden load changes or generation losses. Synthetic inertia, provided by power electronics in renewable energy sources, mimics traditional inertial response to support frequency regulation and maintain reliable grid performance.
Grid-Following Inverters
Grid-following inverters, integral to modern renewable energy systems, rely on the existing grid frequency and voltage for synchronization, thereby lacking inherent synthetic inertia to buffer against sudden disturbances. Enhancing grid stability necessitates advanced control strategies that enable these inverters to emulate inertia, compensating for reduced mechanical inertia in conventional generators and supporting frequency regulation during transient events.
Distributed Synthetic Inertia
Distributed synthetic inertia enhances grid stability by providing rapid, localized frequency support through inverter-based resources, reducing reliance on traditional spinning reserves. This approach enables faster response times and improved resilience against frequency deviations in power systems with high penetration of renewable energy sources.
Battery-based Virtual Inertia
Battery-based virtual inertia enhances grid stability by rapidly injecting or absorbing power to counteract frequency fluctuations, effectively mimicking the inertial response of traditional synchronous generators. This technology supports grid resilience by providing fast frequency regulation and smoothing power imbalances, crucial for integrating variable renewable energy sources.
Ancillary Services Market for Inertia
Ancillary services markets for inertia have evolved to integrate synthetic inertia from inverter-based resources, enhancing grid stability by providing fast frequency response comparable to traditional synchronous generators. Market mechanisms now value the contribution of synthetic inertia, incentivizing investment in advanced grid-supporting technologies that maintain frequency stability and support system resilience during disturbances.

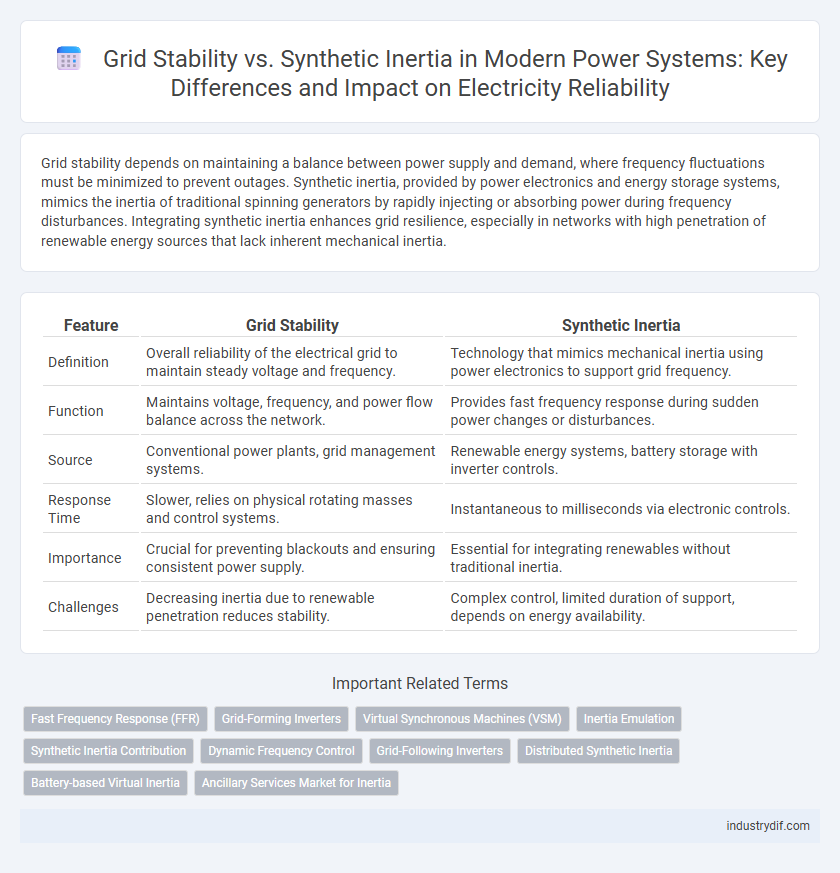

Grid Stability vs Synthetic Inertia Infographic
