industrydif.com A circuit breaker protects electrical systems by automatically interrupting current flow during overloads or short circuits, preventing damage and hazards. An arc flash limiter specifically reduces the energy released during an arc flash event, minimizing potential injury and equipment damage. Both devices are essential for electrical safety, but circuit breakers primarily prevent faults while arc flash limiters mitigate the severity of arc flash incidents.
Table of Comparison
| Feature | Circuit Breaker | Arc Flash Limiter |
|---|---|---|
| Function | Interrupts overcurrent to protect electrical circuits | Reduces arc flash energy and severity during faults |
| Operation | Trips mechanically or electronically upon fault detection | Limits arc duration by quickly extinguishing arc plasma |
| Application | Used in residential, commercial, and industrial panels | Installed in medium and high-voltage switchgear for arc flash mitigation |
| Response Time | Typically 50-200 milliseconds | Less than 10 milliseconds |
| Protection | Prevents equipment damage, fire, and electric shock | Minimizes arc flash injuries and reduces thermal damage |
| Standards Compliance | IEC 60947, UL 489, ANSI C37 | IEEE 1584, NFPA 70E, IEC 62271-200 |
| Cost | Moderate; varies by rating and type | Higher initial investment; reduces incident severity costs |
Definition of Circuit Breaker
A circuit breaker is an electrical safety device designed to automatically interrupt current flow in a circuit when a fault, such as an overload or short circuit, occurs. It protects electrical systems and equipment from damage by preventing excessive current that can cause overheating or fires. Unlike an arc flash limiter, which specifically reduces the energy of an arc flash event, a circuit breaker serves as the primary means of disconnecting power during abnormal electrical conditions.
Definition of Arc Flash Limiter
An Arc Flash Limiter is a specialized electrical device designed to rapidly detect and suppress arc flash incidents within electrical circuits, reducing fault energy and minimizing equipment damage. Unlike circuit breakers that primarily interrupt current flow during overloads or short circuits, arc flash limiters focus on mitigating the intense thermal and pressure effects generated by arc faults. By limiting the arc energy, these devices enhance worker safety and extend the lifespan of switchgear and electrical installations.
Key Functions and Purposes
Circuit breakers serve as automatic switches designed to interrupt electrical flow during overloads or short circuits, protecting circuits from damage. Arc flash limiters specifically reduce the energy and duration of arc flashes, minimizing potential injury and equipment damage during electrical faults. Both devices enhance electrical safety but focus on different threat mitigation within power distribution systems.
How Circuit Breakers Work
Circuit breakers operate by detecting excess current caused by faults or overloads and quickly interrupting the electrical flow to protect circuits from damage. When a fault occurs, the breaker trips by separating internal contacts through electromagnetic or thermal mechanisms, effectively stopping current and preventing electrical fires. Arc flash limiters, in contrast, specifically reduce the intensity and duration of arc flashes but do not provide the direct circuit interruption function that circuit breakers perform.
How Arc Flash Limiters Operate
Arc flash limiters operate by rapidly detecting and interrupting fault currents to minimize the energy released during an arc flash event, significantly reducing the duration and intensity of the arc flash. These devices typically use faster response mechanisms compared to traditional circuit breakers, often employing magnetic or electronic sensing technologies to detect arc flashes within milliseconds. By quickly limiting the arc energy, arc flash limiters enhance electrical safety and protect equipment from severe damage and reduce injury risks for personnel.
Key Differences Between Circuit Breakers and Arc Flash Limiters
Circuit breakers provide essential protection by interrupting electrical current during overloads or short circuits, whereas arc flash limiters specifically reduce the energy and severity of arc flash incidents. Circuit breakers are designed to detect faults and disconnect power quickly to prevent damage, while arc flash limiters focus on minimizing harmful thermal and pressure effects of arc flashes. Understanding these key differences helps improve electrical safety design by combining overload protection with enhanced arc flash mitigation.
Advantages of Circuit Breakers
Circuit breakers provide reliable protection by automatically interrupting electrical flow during overloads or short circuits, minimizing equipment damage and fire risk. Their ability to quickly reset and restore power enhances system uptime and reduces maintenance costs compared to arc flash limiters. Circuit breakers also offer adjustable trip settings, enabling precise customization for various electrical applications and improving overall safety.
Benefits of Arc Flash Limiters
Arc flash limiters significantly enhance electrical safety by rapidly detecting and interrupting arc faults, minimizing equipment damage and preventing severe injuries. These devices reduce downtime and maintenance costs by enabling faster arc flash clearance compared to traditional circuit breakers. Integrating arc flash limiters improves compliance with safety standards while protecting personnel and infrastructure from catastrophic electrical events.
Application Scenarios in the Electrical Industry
Circuit breakers are primarily used for protecting electrical circuits from overloads and short circuits in residential, commercial, and industrial applications, ensuring system safety by automatically interrupting fault currents. Arc flash limiters are specialized devices designed to reduce the energy and impact of an arc flash event, mainly used in high-voltage switchgear and industrial facilities with significant arc flash hazards. In electrical industry scenarios, circuit breakers serve as essential protection components for everyday circuit control, while arc flash limiters are critical in environments requiring enhanced arc flash mitigation and personnel safety measures.
Safety Considerations and Standards
Circuit breakers and arc flash limiters play critical roles in electrical safety by preventing equipment damage and protecting personnel from high-energy faults. Circuit breakers comply with standards such as IEC 60947 and ANSI C37, providing reliable overcurrent protection, while arc flash limiters adhere to IEEE 1584 guidelines, minimizing arc flash incident energy. Integrating both devices enhances workplace safety by reducing electrical hazards and ensuring compliance with OSHA and NFPA 70E safety requirements.
Related Important Terms
Solid-State Circuit Breaker
Solid-state circuit breakers offer rapid response times and precise fault detection compared to traditional mechanical breakers, enhancing system protection and reducing arc flash hazards. Integrating arc flash limiters with solid-state technology further minimizes energy release during faults, improving safety and minimizing equipment damage.
Arc Quenching Device
An arc quenching device effectively extinguishes electrical arcs by rapidly dissipating energy, thereby enhancing safety and preventing equipment damage, unlike circuit breakers that primarily detect and interrupt overload currents. Arc flash limiters specifically mitigate the severity of arc flashes by controlling arc energy, reducing thermal injury risks in high-voltage electrical systems.
Adaptive Arc Flash Protection
Adaptive Arc Flash Protection enhances electrical safety by integrating circuit breakers with arc flash limiters to dynamically detect and mitigate arc flash incidents. This system adjusts trip thresholds in real-time, reducing incident energy levels and preventing equipment damage while ensuring personnel safety through rapid fault interruption.
Digital Twin Circuit Breaker
A Digital Twin Circuit Breaker replicates real-time electrical system behavior, enabling precise monitoring and predictive maintenance, which significantly reduces the risk of arc flash incidents compared to traditional arc flash limiters. By integrating IoT sensors and advanced analytics, digital twin technology enhances system reliability and ensures faster fault detection and isolation, optimizing electrical safety and operational efficiency.
Zone Selective Interlocking (ZSI)
Zone Selective Interlocking (ZSI) enhances coordination between circuit breakers by using communication signals to delay tripping, minimizing unnecessary outages during faults and improving system reliability, whereas arc flash limiters focus primarily on reducing arc flash energy to protect personnel and equipment. Implementing ZSI in circuit breakers enables faster fault isolation and selective tripping, significantly improving electrical safety and operational continuity compared to traditional arc flash limiting devices.
Arc Flash Relay
Arc flash relays enhance electrical safety by rapidly detecting and isolating arc flash incidents, minimizing equipment damage and personnel injury, while circuit breakers provide primary overcurrent protection by interrupting fault currents in electrical circuits. Integrating arc flash relays with circuit breakers optimizes fault response time and improves overall system protection against arc flash hazards.
High-Speed Earthing Switch (HSES)
The High-Speed Earthing Switch (HSES) is designed to rapidly discharge residual electrical energy, preventing dangerous arc flash incidents by creating a direct grounding path, unlike traditional circuit breakers that interrupt current flow more slowly. HSES enhances electrical safety in high-voltage systems by minimizing fault clearance time and reducing arc flash hazards during maintenance or fault conditions.
Vacuum Interruption Technology
Vacuum interruption technology in circuit breakers offers rapid arc quenching by containing and extinguishing the arc within a vacuum, minimizing contact erosion and enhancing reliability. In contrast, arc flash limiters primarily reduce the energy and impact of arc flashes but do not provide the same direct circuit interruption capabilities inherent to vacuum circuit breakers.
Predictive Fault Detection
Circuit breakers detect and interrupt overloads or short circuits based on current thresholds, providing reactive protection, while arc flash limiters enhance predictive fault detection by mitigating arc flash energy and reducing fault currents before damage occurs. Integrating arc flash limiters with advanced sensors enables early identification of electrical anomalies, improving system safety and minimizing downtime.
Arc Energy Reduction Maintenance Switch (AERMS)
The Arc Energy Reduction Maintenance Switch (AERMS) significantly decreases arc flash energy by rapidly interrupting fault currents, enhancing workplace safety beyond traditional circuit breakers. Unlike standard circuit breakers, AERMS technology minimizes arc flash hazards during maintenance tasks, reducing potential injury and equipment damage through faster response times and lower incident energy levels.

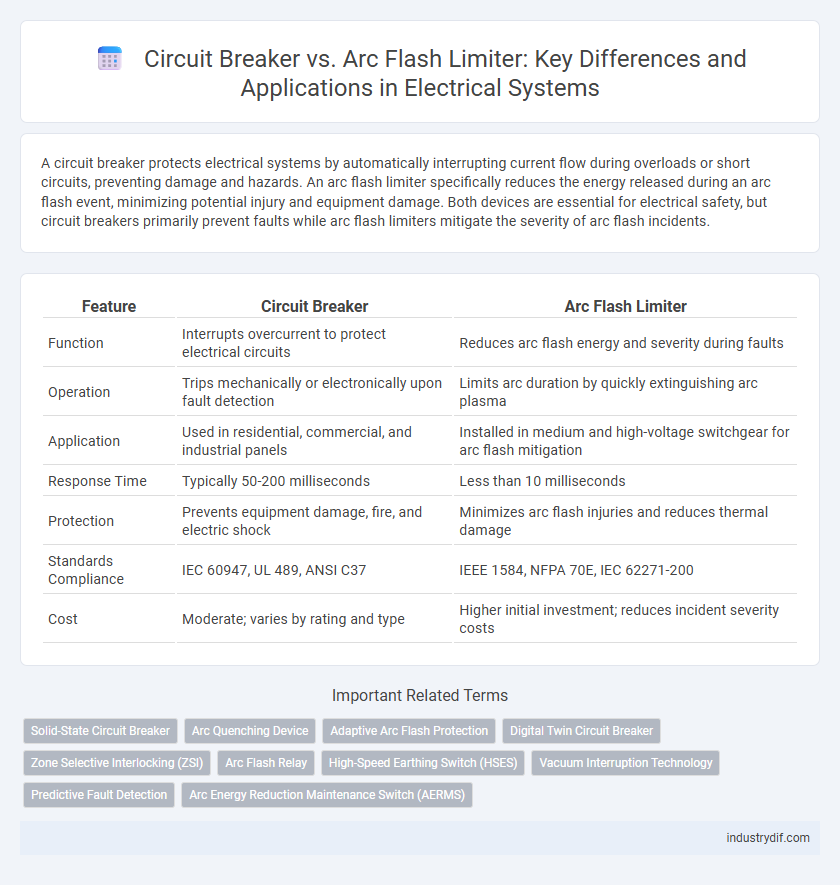

Circuit breaker vs Arc flash limiter Infographic
