industrydif.com An electricity meter primarily measures the total energy consumption in kilowatt-hours, providing essential data for billing and usage monitoring. A phasor measurement unit (PMU) captures real-time voltage and current waveforms with precise time stamps, enabling advanced grid monitoring and stability analysis. While meters track consumption, PMUs offer dynamic insights into power system performance for enhanced reliability and control.
Table of Comparison
| Feature | Electricity Meter | Phasor Measurement Unit (PMU) |
|---|---|---|
| Purpose | Measures electrical energy consumption | Monitors electrical grid stability and phase angles in real-time |
| Data Measured | Voltage, current, energy usage (kWh) | Voltage magnitude, current magnitude, phase angle, frequency |
| Measurement Speed | Slow, interval-based (e.g., 15 minutes, hourly) | High-speed, synchronized at microsecond level |
| Application | Billing, energy management | Grid monitoring, fault detection, dynamic stability analysis |
| Location | Consumer premises | Transmission and substation level |
| Communication | Basic data transmission (wired/wireless) | High-speed data streaming with GPS synchronization |
Overview of Electricity Meters and Phasor Measurement Units
Electricity meters measure electrical energy consumption in residential and commercial settings by recording voltage, current, and power usage over time, providing essential data for billing and energy management. Phasor Measurement Units (PMUs) capture real-time electrical waveforms across wide areas, offering high-resolution synchronized measurements of voltage and current phasors critical for grid monitoring and stability analysis. While electricity meters focus on consumption tracking, PMUs enable dynamic grid situational awareness and advanced grid control through time-synchronized phasor data.
Core Functions: Electricity Meters vs Phasor Measurement Units
Electricity meters primarily measure and record electrical energy consumption in kilowatt-hours, enabling accurate billing and usage monitoring for residential and commercial customers. Phasor Measurement Units (PMUs) capture real-time synchronized voltage and current phasors across the power grid, providing high-resolution data for system stability analysis and dynamic grid monitoring. While electricity meters focus on accumulated energy usage, PMUs deliver time-synchronized data essential for grid reliability and advanced operational control.
Technology and Design Differences
Electricity meters primarily measure energy consumption by recording voltage and current to calculate kilowatt-hours, using electromechanical or electronic technology designed for billing and monitoring purposes. Phasor Measurement Units (PMUs) employ advanced synchrophasor technology, providing real-time, high-precision measurements of voltage and current phasors, including magnitude and phase angle, essential for grid stability and dynamic system analysis. The design of PMUs integrates GPS timing for synchronization across wide areas, enabling enhanced situational awareness, whereas electricity meters focus on localized usage data without time-synchronized phasor information.
Measurement Capabilities: Energy vs Phasor Data
Electricity meters primarily measure energy consumption by recording the total kilowatt-hours (kWh) used over time, providing essential billing data for residential and commercial users. Phasor Measurement Units (PMUs) capture real-time phasor data, including voltage and current magnitude and phase angle, enabling dynamic monitoring of power system stability and grid conditions. The PMU's high-frequency synchronized measurements allow for advanced grid analytics and fault detection beyond the static energy data from traditional meters.
Accuracy and Data Granularity Comparison
Electricity meters primarily measure cumulative energy consumption with moderate accuracy suitable for billing purposes, while Phasor Measurement Units (PMUs) provide high-precision, time-synchronized measurements of voltage, current, and phase angles across the grid with granular data captured multiple times per second. PMUs enable real-time monitoring and enhanced situational awareness by delivering detailed phasor data critical for system stability analysis and fault detection, surpassing traditional meters in temporal resolution and measurement accuracy. The granular, synchronized data from PMUs facilitates advanced grid analytics and dynamic response, whereas electricity meters focus on aggregate energy usage without fine temporal or phase angle detail.
Applications in Power Systems
Electricity meters primarily measure energy consumption for billing and load management in residential and commercial settings. Phasor Measurement Units (PMUs) provide real-time monitoring of voltage, current, and phase angles across the power grid, enabling enhanced grid stability and dynamic system analysis. PMUs support wide-area situational awareness, fault detection, and state estimation critical for modern smart grid applications.
Role in Grid Monitoring and Management
Electricity meters primarily measure voltage, current, and energy consumption at a single point, enabling billing and basic load monitoring. Phasor Measurement Units (PMUs) provide high-resolution, time-synchronized data on voltage and current phasors across the grid, allowing real-time dynamic monitoring of system stability and fault detection. Grid operators rely on PMUs for advanced situational awareness and rapid response, while electricity meters support foundational energy usage tracking.
Integration with Smart Grid Technologies
Electricity meters primarily measure consumption data while Phasor Measurement Units (PMUs) provide real-time, high-resolution synchronized phasor data critical for grid stability and dynamic monitoring. Integration of PMUs with smart grid technologies enhances situational awareness through precise grid synchronization, enabling advanced fault detection and adaptive control. Smart grid deployments leverage combined data from electricity meters and PMUs to optimize energy distribution, improve demand response, and support predictive maintenance strategies.
Cost and Deployment Considerations
Electricity meters generally offer a lower upfront cost and simpler installation compared to Phasor Measurement Units (PMUs), making them suitable for widespread residential and commercial use. PMUs require more sophisticated infrastructure and higher investment but provide real-time synchrophasor data essential for advanced grid monitoring and stability analysis. Deployment of PMUs is typically concentrated in critical grid nodes and transmission systems due to their cost and complexity, whereas electricity meters are ubiquitous for basic consumption measurement.
Future Trends in Electrical Measurement Devices
Electricity meters will evolve to offer enhanced real-time monitoring and integration with smart grids, enabling more efficient energy consumption and billing accuracy. Phasor Measurement Units (PMUs) are expected to advance with higher resolution data acquisition and improved synchronization, facilitating superior grid stability and rapid fault detection. Future trends highlight the convergence of these devices with IoT and AI technologies, driving predictive maintenance and dynamic grid management.
Related Important Terms
Advanced Metering Infrastructure (AMI)
Electricity meters primarily record consumption data in Advanced Metering Infrastructure (AMI) systems, enabling real-time billing and consumer usage analysis, while Phasor Measurement Units (PMUs) provide high-resolution synchrophasor data critical for grid stability and dynamic system monitoring. Integrating AMI with PMUs enhances grid intelligence by combining consumption metrics with precise phase angle measurements, supporting advanced fault detection and demand response strategies.
Smart Meter Data Analytics
Electricity meters primarily record consumption data for billing, while Phasor Measurement Units (PMUs) provide high-resolution synchrophasor data critical for real-time grid monitoring and stability analysis. Smart meter data analytics leverages consumption patterns from electricity meters alongside PMU measurements to enhance demand forecasting, fault detection, and grid optimization.
Interval Metering
Electricity meters measure energy consumption over fixed intervals, typically 15 to 60 minutes, providing detailed billing data, whereas Phasor Measurement Units (PMUs) capture high-resolution synchrophasor data at rates up to 30-60 samples per second, enabling real-time grid monitoring and dynamic system analysis. Interval metering enhances load management and demand response by tracking usage patterns, while PMUs support grid stability through precise voltage and current phase angle measurements across the network.
Time-of-Use (TOU) Metering
Time-of-Use (TOU) metering leverages Electricity Meters to record consumption data at predefined intervals, enabling dynamic billing based on peak and off-peak hours, whereas Phasor Measurement Units (PMUs) primarily provide real-time synchrophasor data for grid stability and monitoring. The integration of TOU metering with advanced Electricity Meters enhances demand response programs, while PMUs contribute critical measurements for system reliability and fault detection.
Non-Intrusive Load Monitoring (NILM)
Electricity meters primarily record total energy consumption for billing, whereas Phasor Measurement Units (PMUs) provide detailed, time-synchronized voltage and current phasor data essential for grid stability analysis. In Non-Intrusive Load Monitoring (NILM), PMUs enable more precise appliance-level load identification by capturing high-resolution electrical signatures beyond the aggregate consumption measured by traditional electricity meters.
Phasor Data Concentrator (PDC)
Phasor Data Concentrators (PDCs) aggregate real-time synchrophasor data from multiple Phasor Measurement Units (PMUs) to enhance grid situational awareness and stability analysis beyond traditional electricity meters. Unlike standard electricity meters that record basic consumption metrics, PDCs enable precise monitoring of voltage, current, and frequency phasors, facilitating dynamic grid management and fault detection.
Synchrophasor Technology
Electricity meters primarily measure energy consumption in kilowatt-hours, while Phasor Measurement Units (PMUs) use synchrophasor technology to capture real-time voltage and current phasors with high synchronization accuracy, enabling dynamic monitoring and enhanced grid stability. Synchrophasor data from PMUs facilitates fast fault detection, state estimation, and wide-area situational awareness critical for modern smart grids and renewable integration.
Wide-Area Measurement System (WAMS)
Electricity meters primarily provide localized energy consumption data, while Phasor Measurement Units (PMUs) deliver high-resolution, time-synchronized voltage and current phasor measurements critical for Wide-Area Measurement Systems (WAMS). WAMS relies on PMUs to enable real-time monitoring and dynamic stability assessment across extensive power grids, enhancing grid reliability and enabling faster response to disturbances.
Real-Time Grid Visibility
Electricity meters primarily measure energy consumption and demand in real-time for billing and basic load monitoring, while Phasor Measurement Units (PMUs) provide high-speed, time-synchronized voltage and current phasor data crucial for dynamic grid visibility and stability analysis. PMUs enhance situational awareness by capturing grid conditions at sub-second intervals, enabling rapid detection of disturbances and improving real-time decision-making in power system operations.
Micro-PMU (Micro Phasor Measurement Unit)
Micro-Phasor Measurement Units (Micro-PMUs) provide high-resolution, time-synchronized voltage and current phasor data at the distribution level, enabling enhanced monitoring and diagnostics of electrical grid stability and power quality compared to traditional electricity meters. Unlike conventional electricity meters that measure basic consumption data, Micro-PMUs capture dynamic system behaviors with sub-second sampling rates, crucial for real-time grid management and integration of renewable energy sources.

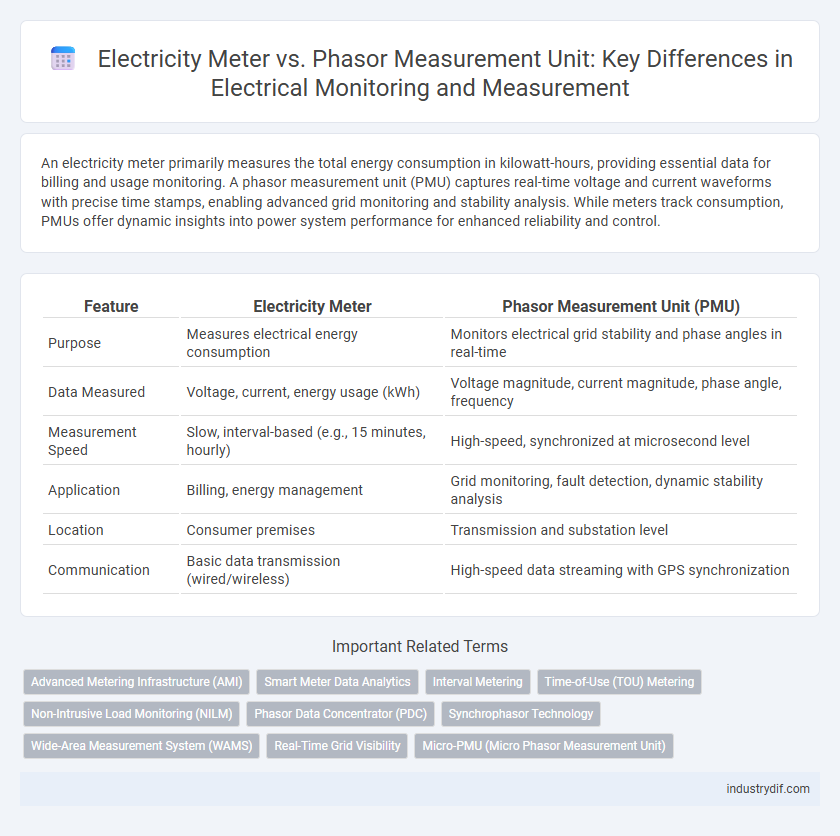

Electricity Meter vs Phasor Measurement Unit Infographic
