industrydif.com Reactive power plays a crucial role in maintaining voltage levels within electrical systems by offsetting inductive and capacitive loads. Dynamic voltage regulation ensures stable voltage output by continuously adjusting the voltage in response to changing load conditions, enhancing power quality and system reliability. Efficient management of reactive power supports dynamic voltage regulation by minimizing voltage fluctuations and reducing losses in transmission networks.
Table of Comparison
| Feature | Reactive Power | Dynamic Voltage Regulation |
|---|---|---|
| Definition | Power stored and released by inductors and capacitors, measured in VAR (volt-ampere reactive) | Automatic adjustment of voltage levels in real-time to maintain grid stability |
| Primary Function | Supports voltage levels and manages power factor | Maintains voltage within acceptable limits dynamically |
| Measurement Unit | VAR (Volt-ampere reactive) | Voltage (Volts), often expressed as percentage deviation |
| Impact on Grid | Reduces losses, improves power quality, prevents voltage collapse | Prevents voltage sags and swells, enhances system reliability |
| Implementation | Reactive power compensation devices (capacitors, reactors, SVCs) | Voltage regulators, tap changers, and power electronics-based controllers |
| Response Time | Milliseconds to seconds depending on equipment | Milliseconds, suitable for rapid voltage correction |
| Use Cases | Power factor correction, voltage support during heavy loads | Real-time voltage stabilization in fluctuating load conditions |
Understanding Reactive Power in Electrical Systems
Reactive power in electrical systems is essential for maintaining voltage stability and enabling dynamic voltage regulation by supporting the magnetic fields in inductive loads such as transformers and motors. It does not perform actual work but fluctuates between the source and load, influencing the voltage levels across the network. Proper management of reactive power optimizes power factor, reduces losses, and ensures efficient operation of electrical grids and dynamic voltage control devices.
Basics of Dynamic Voltage Regulation
Dynamic voltage regulation manages voltage levels in real time by adjusting reactive power flow within the electrical grid. It relies on devices such as synchronous condensers and static VAR compensators to inject or absorb reactive power, stabilizing system voltage under varying load conditions. Effective dynamic voltage regulation ensures grid reliability and prevents voltage collapse during transient disturbances.
Key Differences Between Reactive Power and Voltage Regulation
Reactive power primarily involves the flow of non-working power that supports the magnetic and electric fields in AC systems, affecting voltage levels indirectly. Dynamic voltage regulation actively controls voltage magnitude to maintain system stability through devices like voltage regulators and tap changers. The key difference lies in reactive power being a component of the power flow, whereas dynamic voltage regulation is an operational mechanism to control and optimize voltage within the electrical grid.
Importance of Power Factor in Industrial Applications
Power factor plays a critical role in industrial applications by minimizing reactive power, which causes energy losses and reduces system efficiency. Maintaining a high power factor improves dynamic voltage regulation, ensuring stable voltage levels and enhancing equipment performance. Effective power factor correction leads to reduced utility penalties, lower operating costs, and optimized electrical infrastructure utilization.
Effects of Reactive Power on Grid Stability
Reactive power plays a critical role in maintaining grid stability by supporting voltage levels and preventing voltage collapse during load variations. Excessive reactive power can lead to increased line losses and reduced transmission efficiency, negatively impacting overall system performance. Effective dynamic voltage regulation utilizes reactive power to quickly adjust voltage profiles, enhancing grid reliability and minimizing the risk of blackouts.
Role of Dynamic Voltage Regulation in Power Quality
Dynamic voltage regulation plays a critical role in maintaining power quality by adjusting voltage levels in real-time to counteract fluctuations caused by reactive power. Reactive power, while essential for maintaining magnetic fields in inductive loads, can cause voltage instability and increased losses if not properly managed. Effective dynamic voltage regulation improves system reliability, reduces voltage sags and swells, and optimizes the overall efficiency of electrical distribution networks.
Technologies for Managing Reactive Power
Technologies for managing reactive power include synchronous condensers, static VAR compensators (SVC), and flexible AC transmission systems (FACTS), which dynamically regulate voltage and improve power factor. Advanced power electronics enable rapid adjustment of reactive power, enhancing voltage stability and minimizing transmission losses. These solutions integrate real-time monitoring and control systems to optimize reactive power flow and support grid reliability.
Advanced Solutions for Dynamic Voltage Control
Advanced solutions for dynamic voltage control leverage real-time reactive power compensation through power electronic devices such as STATCOMs and DVRs, enhancing voltage stability and minimizing fluctuations in modern power grids. These systems dynamically inject or absorb reactive power, maintaining optimal voltage profiles under variable load conditions and integrating distributed energy resources efficiently. Enhanced algorithms and predictive control techniques improve response times and accuracy, enabling more resilient and adaptive voltage regulation compared to traditional static methods.
Challenges in Balancing Reactive Power and Voltage Stability
Balancing reactive power with dynamic voltage regulation presents critical challenges in maintaining voltage stability across power grids, as fluctuations in reactive power can cause voltage sags or spikes that destabilize the system. The variability of load demands and the intermittent nature of renewable energy sources complicate the precise control of reactive power injection or absorption necessary for dynamic voltage adjustments. Advanced control strategies and real-time monitoring technologies are essential to mitigate these challenges and ensure reliable, stable voltage levels while optimizing power flow efficiency.
Future Trends in Reactive Power and Voltage Regulation Optimization
Future trends in reactive power and dynamic voltage regulation emphasize advanced control algorithms and real-time monitoring to enhance grid stability and efficiency. Integration of artificial intelligence and machine learning enables adaptive optimization of voltage profiles, minimizing losses and improving power quality. Smart grid technologies and decentralized energy resources facilitate more responsive and precise reactive power compensation, supporting the transition to renewable energy systems.
Related Important Terms
Synchronous Condenser Control
Synchronous condenser control effectively manages reactive power by adjusting excitation to stabilize voltage levels, enhancing dynamic voltage regulation in power systems. Precise control of synchronous condensers mitigates voltage fluctuations and improves grid stability under varying load conditions.
STATCOM (Static Synchronous Compensator)
STATCOM (Static Synchronous Compensator) provides rapid dynamic voltage regulation by injecting or absorbing reactive power, stabilizing the voltage profile in power systems under transient conditions. Its ability to control reactive power independently enables efficient voltage support and enhanced grid stability compared to traditional voltage regulation methods.
Volt-VAR Optimization (VVO)
Volt-VAR Optimization (VVO) enhances grid efficiency by controlling reactive power flow to maintain voltage levels within prescribed limits, thereby reducing energy losses and improving voltage stability. Reactive power management through VVO minimizes the need for dynamic voltage regulation equipment, optimizing overall system performance and supporting reliable electricity delivery.
Fast-Acting Reactive Power Support
Fast-acting reactive power support enhances dynamic voltage regulation by rapidly adjusting reactive power injection or absorption to stabilize voltage levels during transient disturbances. This immediate response helps maintain grid stability and prevents voltage collapse, optimizing overall power system performance.
Grid-Forming Inverter
Reactive power management in grid-forming inverters is crucial for dynamic voltage regulation, as these inverters adjust reactive power output in real-time to stabilize grid voltage under fluctuating load conditions. Advanced control algorithms in grid-forming inverters enable precise reactive power injection or absorption, enhancing voltage stability and supporting grid resilience during transient disturbances.
Distributed Dynamic Voltage Regulation
Distributed Dynamic Voltage Regulation enables localized control of voltage levels by adjusting reactive power in real-time, improving grid stability and reducing losses. Unlike traditional reactive power compensation methods, distributed approaches leverage smart devices and sensors across the network for precise voltage management and enhanced power quality.
Adaptive Volt/VAR Control
Adaptive Volt/VAR Control optimizes reactive power distribution to stabilize voltage levels dynamically, enhancing grid reliability and efficiency. By continuously adjusting reactive power injections based on real-time voltage measurements, this technique minimizes voltage fluctuations and reduces power losses in electrical networks.
Real-Time Reactive Power Dispatch
Real-time reactive power dispatch enhances dynamic voltage regulation by continuously adjusting reactive power flow to stabilize voltage levels and improve system reliability under varying load conditions. Implementing advanced algorithms for instantaneous reactive power control reduces voltage fluctuations and supports optimal grid performance.
Advanced Voltage Ride Through (VRT)
Advanced Voltage Ride Through (VRT) technology enhances dynamic voltage regulation by enabling electrical systems to maintain stability and support grid voltage during transient disturbances. Effective management of reactive power is crucial for VRT performance, as it compensates voltage fluctuations and prevents voltage collapse in power networks.
Ultra-Fast Tap Changer Automation
Ultra-fast tap changer automation enhances dynamic voltage regulation by swiftly adjusting transformer taps to manage reactive power fluctuations in real-time, minimizing voltage instability. This automation improves grid resilience and power quality by reducing response times from seconds to milliseconds in voltage control systems.

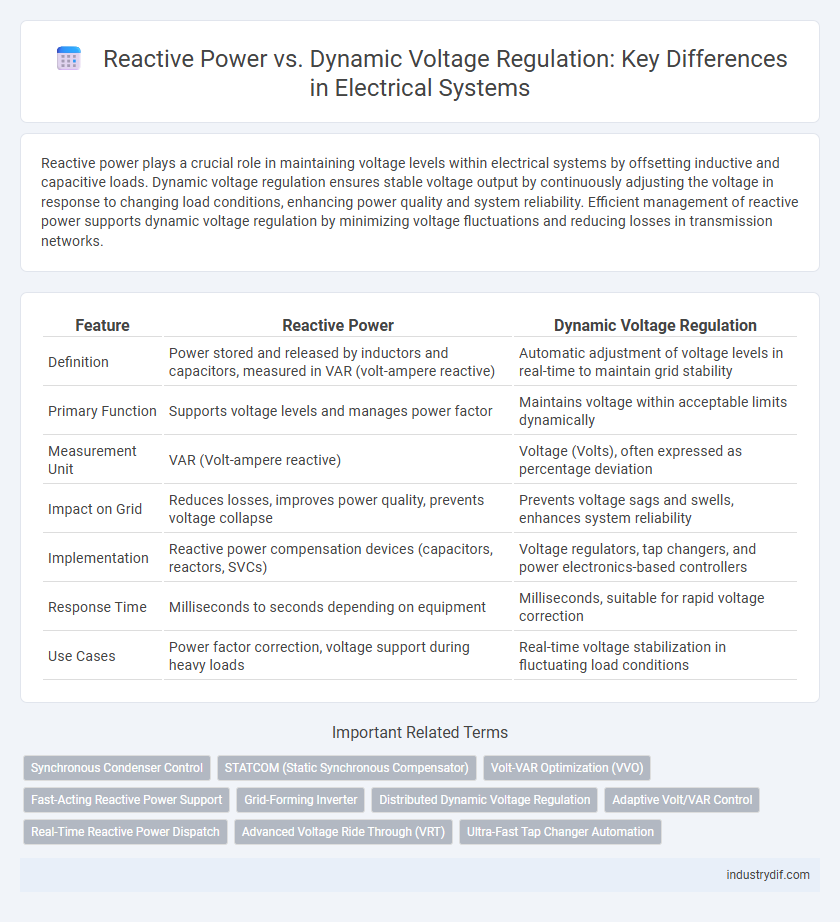

Reactive Power vs Dynamic Voltage Regulation Infographic
