industrydif.com Transmission lines use conventional conductive materials like copper or aluminum, experiencing energy losses due to resistance and heat dissipation over long distances. Superconducting cables eliminate electrical resistance when cooled below critical temperatures, enabling nearly lossless power transmission and higher current capacity in compact designs. These characteristics make superconducting cables a promising alternative for efficient electricity delivery in densely populated or urban areas where space and energy efficiency are critical.
Table of Comparison
| Feature | Transmission Line | Superconducting Cable |
|---|---|---|
| Conductivity | High but with resistance losses | Zero electrical resistance at critical temperature |
| Energy Efficiency | 85-95%, energy lost as heat | Nearly 100%, minimal energy loss |
| Operating Temperature | Ambient temperature | Cryogenic temperatures (typically below -196degC) |
| Installation Cost | Relatively low | High, due to cooling systems |
| Maintenance | Regular maintenance required | Complex and specialized maintenance |
| Current Capacity | Limited by conductor material and size | Very high due to zero resistance |
| Environmental Impact | Potential electromagnetic interference | Minimal interference, compact design |
| Reliability | Proven technology, widely used | Emerging technology, growing adoption |
Introduction to Power Transmission Technologies
Transmission lines are traditional conductors made of copper or aluminum that transport electrical power across long distances with some energy loss due to resistance and heat. Superconducting cables utilize materials that exhibit zero electrical resistance at cryogenic temperatures, enabling near-lossless power transmission and higher current capacity compared to conventional lines. Advances in superconducting technology promise increased efficiency, reduced environmental impact, and enhanced grid stability in modern power transmission systems.
Fundamentals of Conventional Transmission Lines
Conventional transmission lines operate by conducting electricity through copper or aluminum conductors, generating resistive losses and heat during power transfer. These lines are engineered with specific impedance and capacitance characteristics to manage voltage levels and ensure system stability. Despite efficiency limitations, their established infrastructure supports widespread electricity distribution across long distances.
What are Superconducting Cables?
Superconducting cables are advanced electrical conductors made from materials that exhibit zero electrical resistance below a certain critical temperature, allowing for highly efficient transmission of electricity with minimal energy loss. These cables can carry significantly higher current densities compared to conventional transmission lines, reducing the size and weight of power infrastructure. Their implementation can enhance grid capacity and stability, especially in urban or space-constrained environments.
Key Differences: Transmission Line vs Superconducting Cable
Transmission lines typically use copper or aluminum conductors with energy losses due to resistance and heat dissipation, while superconducting cables operate with zero electrical resistance at cryogenic temperatures, enabling near-lossless power transmission. Traditional transmission lines are limited by thermal constraints and voltage drop over long distances, whereas superconducting cables significantly increase current capacity and efficiency within a compact footprint. The higher installation and cooling costs of superconducting cables contrast with their long-term energy savings and reduced infrastructure requirements compared to conventional overhead or underground transmission lines.
Efficiency and Energy Loss Comparison
Transmission lines typically experience energy losses ranging from 2% to 6% due to resistance and electromagnetic interference, while superconducting cables operate with near-zero resistance, reducing energy loss significantly. Superconducting cables maintain higher efficiency especially over long distances and high load conditions, which can dramatically lower operational costs and environmental impact. However, the requirement for cryogenic cooling in superconducting systems introduces complexity and energy consumption that must be balanced against the efficiency gains.
Capacity and Performance Metrics
Transmission lines typically have higher power capacity ratings, ranging from hundreds of megawatts to several gigawatts, while superconducting cables offer nearly zero electrical resistance, resulting in significantly lower energy losses and improved efficiency. Superconducting cables maintain consistent performance under high current densities, enabling more compact infrastructure and enhanced current carrying capacity compared to traditional transmission lines. Key performance metrics such as power density, thermal management, and reliability favor superconducting cables in urban environments where space constraints and energy efficiency are critical.
Cost Analysis: Installation and Maintenance
Transmission lines typically have lower initial installation costs compared to superconducting cables, as conventional materials and established infrastructure reduce upfront expenses. Superconducting cables, while costly to install due to cryogenic cooling systems and specialized materials, offer significantly lower energy losses, resulting in reduced operational and maintenance costs over time. Long-term cost analysis often favors superconducting technology in urban or high-capacity applications due to improved efficiency and reliability despite higher initial investment.
Reliability and Operational Challenges
Transmission lines face reliability challenges such as susceptibility to weather disruptions, electromagnetic interference, and line sag, which can cause outages and maintenance issues. Superconducting cables offer higher reliability due to zero electrical resistance and reduced electromagnetic interference, but operational challenges include maintaining cryogenic temperatures and significant infrastructure costs. Both technologies require robust monitoring systems, but superconducting cables demand more specialized expertise for fault detection and repair.
Environmental Impact and Sustainability
Transmission lines commonly cause habitat disruption, electromagnetic interference, and energy losses contributing to environmental degradation, while superconducting cables significantly reduce energy losses and electromagnetic emissions, enhancing sustainability. Superconducting technology utilizes cryogenic cooling that requires energy input but offers a smaller physical footprint and reduced land use compared to traditional overhead lines. Transitioning to superconducting cables supports decarbonization goals by improving grid efficiency and minimizing ecological disturbance.
Future Trends in Power Transmission Technologies
Future trends in power transmission technologies emphasize enhancing efficiency and reducing energy losses, with superconducting cables offering near-zero resistance compared to traditional transmission lines. Superconducting cables enable higher current density and compact infrastructure, addressing urban space constraints and supporting renewable energy integration. Innovations in cryogenic cooling and material science continue to advance the commercial viability of superconducting power systems, positioning them as a transformative solution for high-capacity, sustainable electricity grids.
Related Important Terms
High-Temperature Superconducting (HTS) Cable
High-Temperature Superconducting (HTS) cables offer significantly lower electrical resistance and higher current density compared to traditional transmission lines, enabling more efficient and compact power delivery in urban and high-demand environments. HTS cables reduce energy losses and thermal management challenges, making them a promising technology for modernizing electrical grids and enhancing grid stability.
AC Losses in Superconductors
AC losses in superconducting cables are significantly lower than in traditional transmission lines, as superconductors exhibit near-zero electrical resistance under cryogenic conditions. This reduction in energy dissipation enhances efficiency, making superconducting cables a superior choice for high-capacity and long-distance electrical power transmission.
Cryogenic Cooling Systems
Transmission lines require extensive cryogenic cooling systems to maintain superconducting cables at ultra-low temperatures, ensuring zero electrical resistance and enhanced efficiency. These cooling systems, often using liquid nitrogen or helium, significantly impact the operational cost and complexity compared to conventional transmission lines.
Fault Current Limiter (FCL)
Fault Current Limiters (FCLs) integrated with superconducting cables significantly reduce fault currents by rapidly increasing impedance, enhancing grid stability and protecting equipment more efficiently than traditional transmission lines. Unlike conventional lines, superconducting cables with FCLs offer lower losses and higher current capacity while minimizing fault impact, enabling faster recovery and improved reliability in electrical power systems.
Resistive vs. Inductive Transmission Losses
Transmission lines experience resistive losses due to the inherent electrical resistance of conductive materials, causing energy dissipation as heat, whereas superconducting cables eliminate resistive losses by operating below critical temperatures, allowing zero electrical resistance. Inductive losses, related to the magnetic fields generated by alternating currents, persist in both systems but are significantly reduced in superconducting cables due to their ability to carry higher current densities with minimal magnetic field interaction.
Compact Transmission Corridor
Superconducting cables offer significantly higher current capacity than traditional transmission lines within a compact transmission corridor, reducing land use and environmental impact. Their zero-resistance properties enable efficient power delivery over shorter distances, optimizing urban infrastructure where space constraints limit corridor expansion.
Superconducting Fault Current Limiter (SFCL)
Superconducting Fault Current Limiter (SFCL) enhances power grid reliability by instantly reducing fault currents without interrupting normal transmission, unlike traditional transmission lines that rely on mechanical breakers. SFCLs leverage superconducting materials to limit overloads, improving system stability while minimizing energy losses and infrastructure costs.
Sub-cooled Liquid Nitrogen
Transmission lines using conventional conductors experience resistive losses that increase operational costs, while superconducting cables cooled with sub-cooled liquid nitrogen achieve near-zero electrical resistance, significantly enhancing efficiency and grid capacity. Sub-cooled liquid nitrogen maintains superconducting materials at optimal temperatures below 77 K, reducing thermal fluctuations and electrical resistance, thus enabling higher current densities with minimal energy dissipation in power transmission systems.
DC Superconducting Cable
DC superconducting cables offer significantly lower electrical resistance and energy losses compared to conventional transmission lines, enabling highly efficient long-distance power delivery. Their ability to carry substantially higher current densities in compact, cryogenically-cooled designs makes them ideal for urban grids and integration with renewable energy sources, outperforming traditional copper or aluminum conductors.
Power Density per Conduit
Transmission lines typically operate with lower power density per conduit due to resistive losses and thermal limitations, constraining their capacity and efficiency. Superconducting cables achieve significantly higher power density by eliminating electrical resistance, allowing for greater current flow within compact conduits and minimizing energy losses.

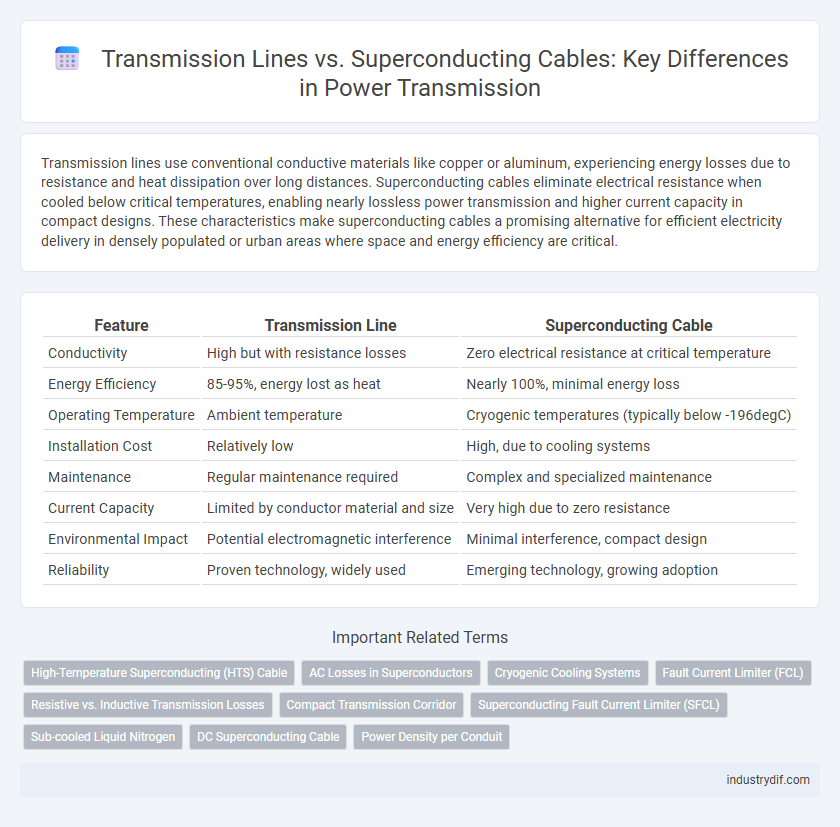

Transmission Line vs Superconducting Cable Infographic
