industrydif.com Microgrids are localized energy systems that integrate multiple distributed energy resources and can operate independently or connected to the main grid, providing enhanced reliability and resilience. Nanogrids are smaller-scale systems typically designed for individual buildings or single premises, focusing on energy self-sufficiency with simpler management compared to microgrids. Both microgrids and nanogrids support renewable integration and demand response but differ in scale, complexity, and typical applications.
Table of Comparison
| Aspect | Microgrid | Nanogrid |
|---|---|---|
| Definition | Localized energy network with multiple interconnected loads and generation sources. | Smaller, single building or facility energy system operating independently or connected. |
| Scale | Community-level, serving multiple buildings or blocks. | Single building or small facility scale. |
| Capacity | Typically 10 kW to several MW. | Typically below 10 kW. |
| Energy Sources | Mixed renewable (solar, wind), storage, diesel generators. | Primarily solar PV, battery storage, small-scale generators. |
| Grid Interaction | Can operate connected to or islanded from the main grid. | Usually operates independently, may connect for backup. |
| Control Complexity | Advanced energy management systems managing multiple sources and loads. | Simpler control optimized for single facility energy needs. |
| Use Case | Community resilience, microgrid-enabled smart cities, remote areas. | Individual homes, small offices, remote cabins. |
Introduction to Microgrids and Nanogrids
Microgrids are localized energy systems that integrate multiple distributed energy resources like solar panels, wind turbines, and energy storage to supply electricity within a defined area such as a campus, hospital, or neighborhood. Nanogrids operate on a smaller scale than microgrids, typically serving individual buildings or small clusters with a focus on self-sufficiency through sources like rooftop solar and batteries. Both systems enhance grid resilience and enable efficient energy management but differ primarily in their size, scope, and complexity.
Defining Microgrids: Key Characteristics
Microgrids are localized energy systems that operate independently or in conjunction with the main power grid, integrating renewable energy sources, energy storage, and demand management technologies. They provide enhanced reliability, resilience, and energy efficiency by autonomously managing generation and consumption within a defined boundary. Key characteristics include grid-connected or islanded operation modes, scalability to support community-level power needs, and advanced control systems for seamless energy distribution.
Understanding Nanogrids: Core Features
Nanogrids are smaller, localized energy systems designed to manage power at the building or home level, integrating renewable energy sources and storage units efficiently. They operate independently or in conjunction with microgrids, emphasizing precise energy control, resilience, and optimized consumption. Core features include real-time monitoring, bidirectional power flow, and advanced energy management systems tailored for limited-scale applications.
Microgrid vs Nanogrid: Scale and Capacity
Microgrids typically cover larger geographic areas, serving multiple buildings or entire communities with energy capacities ranging from tens of kilowatts to several megawatts. Nanogrids operate on a much smaller scale, usually powering a single building or small cluster, with capacities generally under 10 kilowatts. The scale difference impacts system complexity, with microgrids requiring advanced management and grid integration compared to the simpler, localized control of nanogrids.
Control Architectures and Technologies
Microgrids utilize hierarchical control architectures, integrating centralized, decentralized, and distributed control technologies to manage energy resources efficiently at a community level. Nanogrids feature simpler, mostly decentralized control systems designed for localized energy management within individual buildings or facilities. Advanced communication protocols and real-time data analytics enhance microgrid control robustness, while nanogrids prioritize cost-effective, plug-and-play technologies for rapid deployment and scalability.
Applications in Different Sectors
Microgrids are extensively deployed in commercial, industrial, and community sectors due to their ability to manage larger loads and integrate diverse energy sources. Nanogrids, with their smaller scale and simpler architecture, are ideal for residential applications and remote, off-grid locations where energy demand is minimal. Both systems enhance energy reliability and sustainability but serve distinct roles based on the scale and complexity of the energy needs in various sectors.
Integration with Renewable Energy Sources
Microgrids effectively integrate renewable energy sources like solar and wind by managing distributed generation and storage within a localized network, ensuring grid stability and energy efficiency. Nanogrids operate on a smaller scale, optimizing renewable integration for individual buildings or small communities by balancing supply and demand dynamically. Both systems enhance resilience and sustainability but differ in scale and control complexity, with microgrids supporting broader energy sharing and nanogrids focusing on isolated, self-sufficient energy management.
Reliability and Resilience Advantages
Microgrids provide enhanced reliability by operating autonomously during main grid outages through advanced control systems and energy storage integration. Nanogrids offer superior resilience in localized settings by managing power at a smaller scale, enabling quicker fault isolation and restoration. Both systems improve energy security, but microgrids excel in community-wide reliability, while nanogrids optimize resilience for individual buildings or clusters.
Cost Considerations and Economic Impact
Microgrids generally involve higher initial capital expenditures due to their larger scale and complex infrastructure compared to nanogrids, which are smaller and more cost-effective for localized energy management. The economic impact of microgrids includes significant savings on energy costs and enhanced grid resilience for communities or institutions, while nanogrids primarily reduce expenses by providing reliable power to off-grid or remote locations at a lower investment threshold. Both systems offer scalable solutions to energy independence but differ in cost structures and economic benefits based on their size and application.
Future Trends in Grid Decentralization
Microgrids and nanogrids represent crucial advancements in the decentralization of electricity systems, with microgrids typically serving larger, community-scale applications and nanogrids focusing on single buildings or small facilities. Future trends indicate increasing integration of renewable energy sources and advanced energy storage solutions within these grids, enhancing resilience and reliability. Enhanced control technologies and blockchain-based energy trading are expected to further optimize grid operations and empower localized energy management.
Related Important Terms
Peer-to-Peer Energy Trading
Microgrids and nanogrids both support peer-to-peer energy trading, enabling decentralized electricity exchange among prosumers to enhance energy autonomy and grid resilience. Nanogrids, being smaller and often single-building systems, facilitate more localized and flexible trading within limited networks, while microgrids operate on a larger scale, integrating multiple buildings or communities to optimize distributed energy resource management.
Islanding Operation
Microgrids are capable of islanding operation, maintaining power supply independently during grid outages by managing multiple distributed energy resources and loads, whereas nanogrids typically serve a single facility or building with limited islanding capabilities due to their smaller scale and simpler control systems. Effective islanding in microgrids enhances grid resilience and reliability by enabling localized energy management, while nanogrids prioritize simplicity and self-sufficiency for individual consumers.
Grid-Forming Inverters
Grid-forming inverters in microgrids provide robust stability and seamless islanding by actively regulating voltage and frequency, supporting multiple distributed energy resources. Nanogrids use similar grid-forming inverter technology for localized energy management but on a smaller scale, enhancing resilience in single-building or community-level power systems.
Resilient Nanogrid Architecture
Resilient nanogrid architecture offers enhanced reliability by integrating localized energy generation, storage, and control systems tailored for small-scale applications, ensuring continuous power during outages and reducing dependency on larger grids. Unlike microgrids, nanogrids optimize energy management at the individual building or device level, enabling adaptive load balancing and real-time response to grid disturbances.
Multi-Microgrid Integration
Multi-microgrid integration enables decentralized electricity networks to operate cohesively, enhancing resilience and optimizing energy distribution across interconnected microgrids. In contrast, nanogrids serve localized, singular loads with limited scalability, making them less suitable for complex, large-scale energy management scenarios.
DC Nanogrid
A DC nanogrid operates on direct current, enabling efficient integration of local renewable energy sources and energy storage with minimal conversion losses, making it ideal for small-scale, off-grid applications. Unlike microgrids, which often manage larger AC networks and support multiple buildings, nanogrids focus on single-device or single-building energy autonomy using DC power systems for optimized performance and reliability.
Community Microgrid
A Community Microgrid integrates multiple energy resources like solar panels, wind turbines, and energy storage systems to provide localized, reliable power while enhancing grid resilience and enabling peer-to-peer energy trading within neighborhoods. Compared to Nanogrids, which typically serve single buildings or small sites, Community Microgrids support broader energy management, economic optimization, and demand response across entire communities or districts.
Transactive Energy
Microgrids integrate multiple distributed energy resources within a localized network, enabling transactive energy markets by facilitating real-time energy trading and balancing supply and demand dynamically. Nanogrids operate at a smaller scale, typically managing individual homes or buildings, optimizing energy usage and peer-to-peer transactions through edge-level control systems.
Plug-and-Play Nanogrid
A plug-and-play nanogrid offers a highly modular and scalable solution for localized electricity management, enabling easy integration of renewable energy sources and energy storage within small-scale environments such as homes or small businesses. Unlike larger microgrids, plug-and-play nanogrids simplify deployment and operation with automated control systems, enhancing energy efficiency and resilience without requiring extensive infrastructure or specialized technical expertise.
Hybrid Microgrid-Nanogrid Systems
Hybrid microgrid-nanogrid systems combine the robust capacity and stability of microgrids with the localized, ultra-small scale operation of nanogrids, enabling enhanced energy resilience and efficiency in distributed energy resources (DER). These integrated systems optimize power management through advanced control algorithms, supporting seamless islanding, load balancing, and renewable energy integration for smart grid applications.

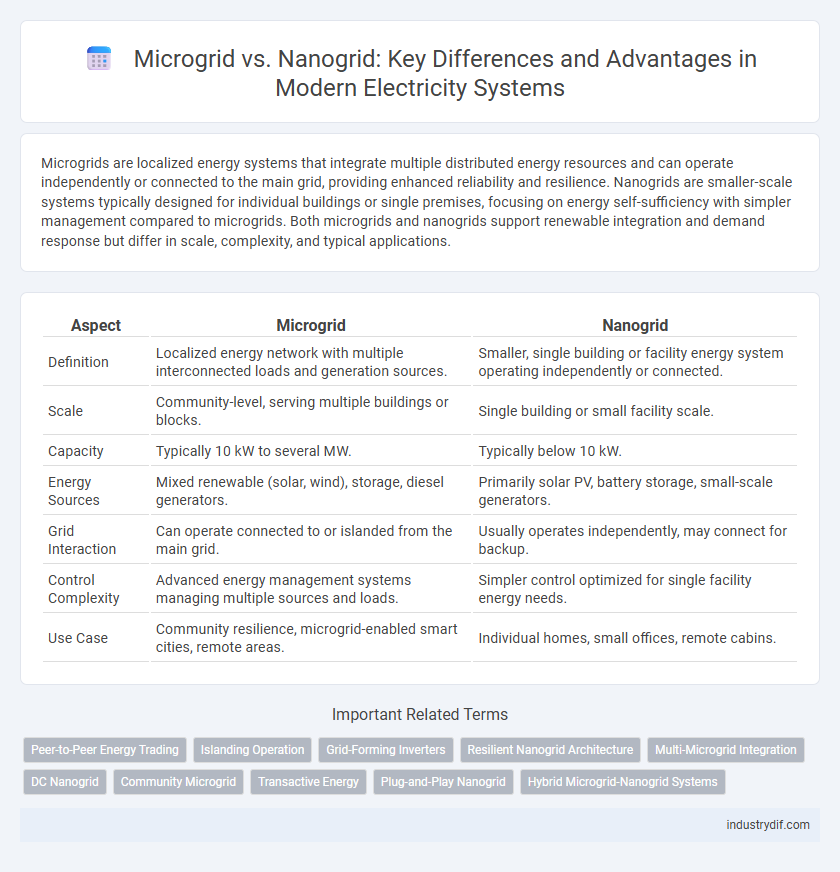

Microgrid vs Nanogrid Infographic
