industrydif.com Direct Current (DC) provides a steady and consistent flow of electricity, commonly used in batteries and electronic devices, while High-Voltage Direct Current (HVDC) technology enables efficient long-distance power transmission with reduced energy losses. HVDC systems connect asynchronous grids and facilitate the integration of renewable energy sources by minimizing voltage drops over vast distances. Compared to traditional AC transmission, HVDC offers enhanced control, lower electrical resistance, and improved stability in modern power networks.
Table of Comparison
| Feature | Direct Current (DC) | High-Voltage Direct Current (HVDC) |
|---|---|---|
| Voltage Level | Low to Medium (up to a few kV) | High (typically 100 kV to 800 kV) |
| Transmission Distance | Short distance | Long distance (hundreds to thousands of kilometers) |
| Power Loss | Higher losses over long distances | Lower losses due to high voltage and efficient conversion |
| Application | Electronic devices, battery-powered systems | Bulk power transmission and interconnection of AC grids |
| Infrastructure Cost | Lower initial cost, simpler infrastructure | Higher cost due to converter stations and specialized equipment |
| System Complexity | Simple circuits and components | Complex conversion and control technology required |
| Grid Integration | Limited to local or small-scale use | Enables asynchronous AC grid interconnection |
Introduction to Direct Current (DC)
Direct Current (DC) provides a constant voltage or current flow in one direction, essential for powering electronic devices and battery-operated systems. Unlike Alternating Current (AC), DC maintains a steady polarity, making it ideal for precision applications and energy storage integration. High-Voltage Direct Current (HVDC) extends DC technology for long-distance power transmission with reduced losses and enhanced grid stability.
Fundamentals of High-Voltage Direct Current (HVDC)
High-Voltage Direct Current (HVDC) technology transmits electricity using direct current at voltage levels typically above 100 kV, enabling efficient long-distance power transfer with reduced losses compared to conventional Direct Current (DC) systems. HVDC links utilize converter stations to change alternating current (AC) to DC and vice versa, facilitating grid interconnections and bulk power transmission across continents or underwater cables. The fundamental advantages of HVDC include lower line losses, improved system stability, and the ability to connect asynchronous grids, making it essential for modern electric power infrastructure.
Historical Development of DC and HVDC
Direct Current (DC) dates back to the 19th century with Thomas Edison's pioneering work in electrical power systems, initially used for short-distance power distribution. High-Voltage Direct Current (HVDC) technology emerged in the mid-20th century to address long-distance electricity transmission challenges, significantly reducing energy losses compared to traditional AC systems. The evolution from basic DC to HVDC reflects advancements in semiconductor technology and power electronics that enable efficient conversion and control at high voltages.
Key Differences: DC vs. HVDC
Direct Current (DC) refers to the unidirectional flow of electric charge, typically used in low-voltage applications such as batteries and electronic devices. High-Voltage Direct Current (HVDC) technology transmits electricity over long distances at voltages above 100 kV, minimizing power losses and enhancing grid stability. Unlike standard DC systems, HVDC enables efficient bulk power transfer between asynchronous grids and reduces infrastructure costs in long-distance transmission.
Efficiency and Power Loss Considerations
High-Voltage Direct Current (HVDC) systems exhibit significantly lower power losses compared to traditional Direct Current (DC) transmission, especially over long distances, due to reduced resistive heating in conductors. HVDC enables efficient bulk power transfer with improved voltage stability and reduced line reactance, enhancing overall transmission efficiency in large-scale electrical grids. In contrast, conventional DC systems are more suitable for short-distance applications where power loss and conversion costs are minimal.
Applications in Modern Electrical Grids
Direct Current (DC) is commonly used in low-voltage applications such as battery charging, electronics, and small-scale power systems, offering simple and efficient energy flow. High-Voltage Direct Current (HVDC) technology enables long-distance electricity transmission with reduced losses, making it ideal for interconnecting regional grids and integrating renewable energy sources like offshore wind farms. Modern electrical grids leverage HVDC systems to enhance stability, improve power quality, and facilitate cross-border electricity trade.
Cost Comparison: Infrastructure and Maintenance
Direct Current (DC) systems typically require simpler and less expensive infrastructure but become costly over long distances due to energy losses and multiple conversion stations. High-Voltage Direct Current (HVDC) systems involve higher initial investment in converter stations and specialized equipment but offer lower transmission losses and reduced maintenance costs over extended distances. HVDC technology is more cost-effective for long-distance and high-capacity power transmission, while standard DC is preferable for shorter, low-capacity applications.
Challenges and Limitations of DC and HVDC
Direct Current (DC) faces limitations in long-distance transmission due to voltage drop and power loss over extended cables, affecting efficiency and requiring frequent voltage conversion. High-Voltage Direct Current (HVDC) systems mitigate some transmission losses and enable efficient bulk power transfer, but they present challenges in complex converter station costs, electromagnetic interference, and integration with existing alternating current (AC) grids. The technical intricacies of HVDC, including control system complexity and maintenance demands, impose constraints on widespread adoption despite its superior performance in specific scenarios.
Advancements in Conversion Technology
Advancements in power electronics have significantly improved the efficiency of converting Alternating Current (AC) to High-Voltage Direct Current (HVDC), utilizing insulated-gate bipolar transistors (IGBTs) and modular multilevel converters (MMCs) to enable precise voltage control and reduced energy losses. Enhanced semiconductor materials such as silicon carbide (SiC) have increased switching speeds and thermal performance, optimizing HVDC systems for long-distance electricity transmission and integration of renewable energy. These innovations in conversion technology allow HVDC networks to deliver higher power capacity with improved grid stability compared to traditional direct current (DC) applications.
Future Trends in DC and HVDC Transmission
Direct Current (DC) transmission continues to advance with increased adoption of High-Voltage Direct Current (HVDC) systems, driven by their efficiency in long-distance power transfer and integration of renewable energy sources. Emerging trends include multi-terminal HVDC grids enabling enhanced grid stability, reduced transmission losses, and improved interconnection between asynchronous power networks. Innovations in power electronics and control technologies are accelerating the deployment of HVDC for smart grid applications, offshore wind integration, and cross-border electricity trading.
Related Important Terms
Bipolar HVDC
Direct Current (DC) transmission utilizes a single polarity voltage, whereas Bipolar High-Voltage Direct Current (HVDC) systems employ two conductors with opposite polarities, enhancing efficiency and reliability in long-distance power transfer. Bipolar HVDC configurations minimize power losses and provide fault tolerance by enabling one pole to continue operation if the other fails, making it ideal for integrating renewable energy and interconnecting asynchronous grids.
Monopolar HVDC
Monopolar HVDC systems transmit direct current at voltages typically ranging from +-100 kV to +-500 kV, enabling efficient long-distance power transfer with reduced line losses compared to traditional direct current (DC) systems. These systems utilize a single conductor with a return path through the earth or a metallic return, optimizing infrastructure costs while maintaining high transmission capacity.
Voltage Source Converter (VSC) HVDC
Voltage Source Converter (VSC) HVDC technology enables efficient transmission of direct current at high voltage levels, providing improved controllability and stability compared to traditional DC systems. VSC-HVDC systems utilize insulated gate bipolar transistors (IGBTs) to rapidly switch current, allowing for flexible grid integration, bidirectional power flow, and enhanced voltage support in renewable energy applications.
Line-Commutated Converter (LCC) HVDC
Line-Commutated Converter (LCC) High-Voltage Direct Current (HVDC) systems utilize thyristor-based converters to efficiently transmit large amounts of power over long distances with reduced losses compared to traditional Direct Current (DC) methods. LCC-HVDC technology enables controlled power flow and stability in interconnected grids by converting AC to DC and back using line-commutated converters, making it ideal for bulk power transmission and intercontinental links.
Multi-terminal HVDC Grids
Multi-terminal HVDC grids enable efficient, flexible integration of renewable energy sources and enhance grid stability by allowing bidirectional power flow between several nodes. Unlike traditional direct current systems, these advanced HVDC configurations reduce transmission losses and support complex interconnections across large distances and diverse geographic locations.
DC Circuit Breaker
Direct Current (DC) circuit breakers for traditional low-voltage applications differ significantly from those used in High-Voltage Direct Current (HVDC) systems, with HVDC breakers designed to interrupt currents at voltages exceeding hundreds of kilovolts and currents reaching several kiloamperes. Advanced HVDC circuit breakers employ hybrid mechanisms combining mechanical switches and power electronics to rapidly isolate faults, minimizing energy loss and protecting large-scale power grids with high efficiency and reliability.
Mass Impregnated Cables
Mass impregnated cables are crucial in high-voltage direct current (HVDC) transmission, providing superior insulation and durability compared to the simpler insulation systems used in standard direct current (DC) cables. Their robust construction enables HVDC systems to efficiently transmit electricity over long distances with minimal losses, outperforming traditional DC solutions in both capacity and reliability.
Cross-Bonded HVDC Cables
Cross-bonded HVDC cables utilize segmented conductor screens and cross-bonding techniques to significantly reduce sheath losses and electromagnetic interference compared to traditional direct current cables. This configuration enhances system reliability and efficiency in high-voltage direct current transmission networks by balancing the induced voltages along the cable sheaths.
Modular Multilevel Converter (MMC)
Modular Multilevel Converters (MMC) are critical in High-Voltage Direct Current (HVDC) systems, offering scalable, efficient voltage conversion with reduced harmonic distortion compared to traditional Direct Current (DC) applications. HVDC technology utilizing MMC enables long-distance power transmission with lower losses and improved control over power flow, making it essential for modern grid interconnections and renewable energy integration.
Hybrid HVDC System
Hybrid HVDC systems combine conventional direct current (DC) transmission with high-voltage direct current (HVDC) technology to enhance power transfer efficiency and grid stability over long distances. These systems leverage HVDC's capability for bulk power transmission and integrate DC components for flexible, reliable energy distribution in complex electrical networks.

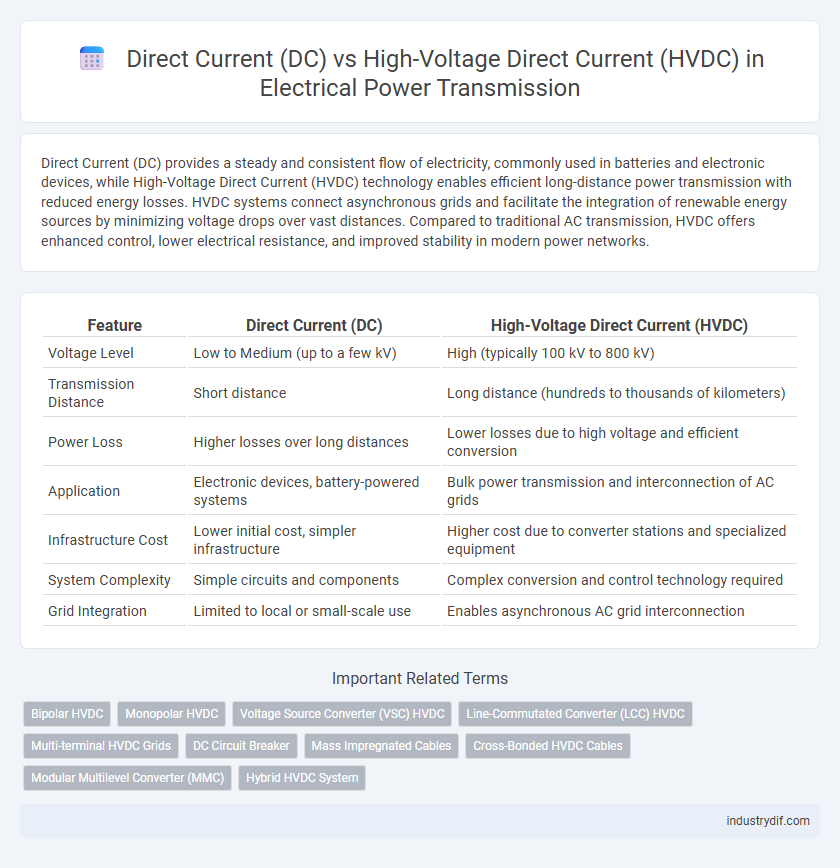

Direct Current vs High-Voltage Direct Current Infographic
