industrydif.com A generator converts mechanical energy into electrical energy by rotating a coil within a magnetic field, producing active power for electrical grids. A synchronous condenser, on the other hand, operates without mechanical load to regulate voltage and improve power factor by supplying or absorbing reactive power. While both utilize synchronous machines, generators primarily produce active power, whereas synchronous condensers stabilize voltage and enhance system reliability.
Table of Comparison
| Feature | Generator | Synchronous Condenser |
|---|---|---|
| Purpose | Converts mechanical energy to electrical energy | Provides reactive power and voltage control |
| Power Output | Active and reactive power | Only reactive power (no active power) |
| Energy Source | Fuel-driven or renewable mechanical input | No fuel or mechanical power input required |
| Function in Grid | Electricity generation and supply | Voltage regulation and power factor correction |
| Operation Mode | Continuous power output | Adjusts excitation to control reactive power |
| Typical Use | Power plants, backup power | Grid stability, reactive power compensation |
| Maintenance | High due to mechanical parts and fuel system | Lower, mainly electrical excitation system |
Introduction to Generators and Synchronous Condensers
Generators convert mechanical energy into electrical energy through electromagnetic induction, enabling power production in various industrial and utility applications. Synchronous condensers, essentially synchronous machines operating without mechanical load, provide reactive power support and voltage regulation to electrical grids. Both devices share similar construction principles but serve distinct roles in power systems management and stability.
Fundamental Principles: Generator vs Synchronous Condenser
A generator converts mechanical energy into electrical energy by rotating a magnetic field inside stationary windings or vice versa, producing AC power with synchronized frequency and voltage. A synchronous condenser, on the other hand, operates without mechanical power input and functions primarily as a reactive power compensator, controlling voltage and power factor by adjusting its excitation. Both devices rely on synchronous machines but differ fundamentally in purpose: energy generation versus voltage regulation and reactive power support.
Differences in Functionality and Operation
A generator converts mechanical energy into electrical energy by rotating a coil within a magnetic field to produce voltage, serving as a primary power source in electrical systems. A synchronous condenser, however, operates without mechanical energy input to generate power; it functions as a synchronous motor running without a mechanical load, providing reactive power support and voltage regulation to stabilize the grid. While generators supply active power, synchronous condensers exclusively manage reactive power, improving power factor and system stability without contributing actual electrical energy production.
Applications in Modern Power Systems
Generators convert mechanical energy into electrical power, serving as primary energy sources in power plants and renewable energy installations. Synchronous condensers provide reactive power compensation, voltage regulation, and grid stability without active power generation, making them essential for modern grid reliability. Their applications complement each other by enhancing power quality and supporting renewable integration in contemporary electrical networks.
Role in Voltage Regulation and Reactive Power Compensation
Generators produce electrical power while simultaneously supplying reactive power, playing a crucial role in voltage regulation by adjusting excitation levels to maintain system stability. Synchronous condensers, on the other hand, do not generate real power but provide dynamic reactive power compensation, enhancing voltage stability by absorbing or supplying reactive power as needed. Both devices support grid voltage control, with synchronous condensers offering rapid response and improved power factor correction without fuel consumption.
Design and Construction Differences
Generators convert mechanical energy into electrical energy using a rotor with a magnetic field and stator windings, typically incorporating slip rings or a brushless exciter for excitation. Synchronous condensers resemble generators in rotor and stator design but lack a prime mover, relying on external power to maintain synchronous speed and provide reactive power compensation. The structural distinctions lie in rotor pole design and the absence of a prime mover in synchronous condensers, resulting in differences in windings, excitation systems, and mechanical construction tailored to their specific grid support functions.
Efficiency and Performance Comparison
Generators convert mechanical energy into electrical energy with efficiencies often exceeding 95%, providing steady power output and voltage regulation under load. Synchronous condensers, primarily used for reactive power compensation and voltage stability, exhibit lower energy efficiency since they do not generate real power but improve power factor and system reliability. Performance comparisons highlight generators' role in energy production versus synchronous condensers' effectiveness in enhancing grid stability and reducing transmission losses.
Installation, Maintenance, and Lifecycle Costs
Generators require comprehensive installation with fuel supply systems and robust cooling, leading to higher upfront costs compared to synchronous condensers, which need simpler electrical connections and less physical infrastructure. Maintenance for generators involves regular engine servicing, fuel system checks, and lubrication, increasing operational expenses, whereas synchronous condensers primarily need electrical inspections and bearing lubrication, resulting in lower ongoing costs. Lifecycle costs of generators are significantly influenced by fuel consumption and mechanical wear, while synchronous condensers benefit from longer operational life and reduced energy use, making them cost-effective for reactive power support and voltage regulation.
Integration with Renewable Energy Sources
Generators convert mechanical energy into electrical power, directly supplying electricity to the grid and accommodating variable renewable energy inputs like wind or solar. Synchronous condensers, while not producing power, stabilize voltage and improve power factor, enhancing grid reliability amidst fluctuating renewable energy penetration. Integrating these technologies optimizes grid stability and supports the efficient utilization of renewable energy sources.
Future Trends in Power System Stabilization
Future trends in power system stabilization highlight the increasing adoption of synchronous condensers due to their ability to provide dynamic reactive power support and enhance grid stability without active power generation. Generators, while essential for energy production, face challenges integrating intermittent renewable sources, prompting a shift towards hybrid systems combining generation with synchronous condensers for improved voltage regulation and fault ride-through capabilities. Advanced control algorithms and digital monitoring technologies are driving the evolution of synchronous condensers, positioning them as critical assets for resilient and flexible modern power grids.
Related Important Terms
Grid-Forming Generator
Grid-forming generators provide stable voltage and frequency by actively controlling power output and synchronizing with the grid, unlike synchronous condensers that primarily offer reactive power support to improve voltage stability without actively generating power. The generator's ability to form and maintain grid conditions makes it essential for integrating renewable energy sources and improving overall grid reliability.
Synchronous Condenser Retrofitting
Synchronous condenser retrofitting enhances grid stability by providing reactive power support and voltage regulation without generating active power, making it an efficient alternative to traditional generators in modern power systems. Upgrading existing generators to synchronous condensers extends equipment lifespan and improves system reliability, particularly in integrating renewable energy sources.
Dynamic VAR Support
A synchronous condenser provides dynamic VAR support by rapidly adjusting reactive power output to stabilize voltage in electrical grids without generating real power, enhancing system reliability and power quality. In contrast, a generator can supply both real power and dynamic VARs but typically operates under mechanical constraints that limit its reactive power responsiveness compared to synchronous condensers.
Fast Frequency Response (FFR)
Generators deliver significant Fast Frequency Response (FFR) by rapidly adjusting mechanical power input to stabilize grid frequency during disturbances, leveraging their rotational inertia and governor controls. Synchronous condensers provide FFR primarily through their stored kinetic energy and reactive power capabilities, enabling swift frequency support without active power generation.
Inertia Emulation
Generators inherently provide inertia through their rotating mass, stabilizing grid frequency during fluctuations, whereas synchronous condensers, while also having rotating mass, do not generate power but can emulate inertia by controlling their excitation and torque output to support grid stability. Inertia emulation with synchronous condensers enhances grid resilience by mimicking the kinetic energy response traditionally offered by generators, crucial for integrating renewable energy sources with low or no mechanical inertia.
Virtual Synchronous Machine (VSM)
A Virtual Synchronous Machine (VSM) emulates the inertia and voltage control characteristics of traditional synchronous generators, providing grid stability without rotating mass. Unlike synchronous condensers, which rely on physical inertia, VSMs use power electronics to mimic synchronous operation, enhancing frequency response and reactive power support in modern electrical networks.
Black Start Capability (BSC)
Generators provide robust Black Start Capability (BSC) by independently establishing grid voltage and frequency from a de-energized state, essential for restoring power after a blackout. In contrast, synchronous condensers lack prime movers and cannot initiate power generation, limiting their role in black start scenarios to voltage support once the system is energized.
Fault Ride-Through (FRT)
Generators maintain grid stability during fault ride-through (FRT) events by actively supplying reactive power and supporting voltage recovery, whereas synchronous condensers provide dynamic reactive power compensation without active power generation, enhancing voltage regulation and system resilience. The inherent inertia of generators aids in fault ride-through by sustaining rotor speed, while synchronous condensers contribute to FRT capabilities through fast-reacting excitation systems that stabilize voltage during grid disturbances.
Reactive Power Compensation
Generators produce both active and reactive power, supplying load demands while maintaining voltage stability; synchronous condensers, operating without fuel input, primarily provide reactive power compensation by adjusting excitation to regulate voltage and improve power factor. Reactive power control in synchronous condensers enhances system stability, reduces transmission losses, and supports voltage regulation, differentiating their role from generators in grid management.
Synchronous Condenser Start-Up Technologies
Synchronous condenser start-up technologies typically utilize static frequency converters or pony motors to bring the machine up to synchronous speed before excitation is applied, ensuring stable voltage support and reactive power control in power systems. Unlike generators that start by ramping mechanical input to produce power, synchronous condensers emphasize precise synchronization techniques to maintain grid stability without active power generation.

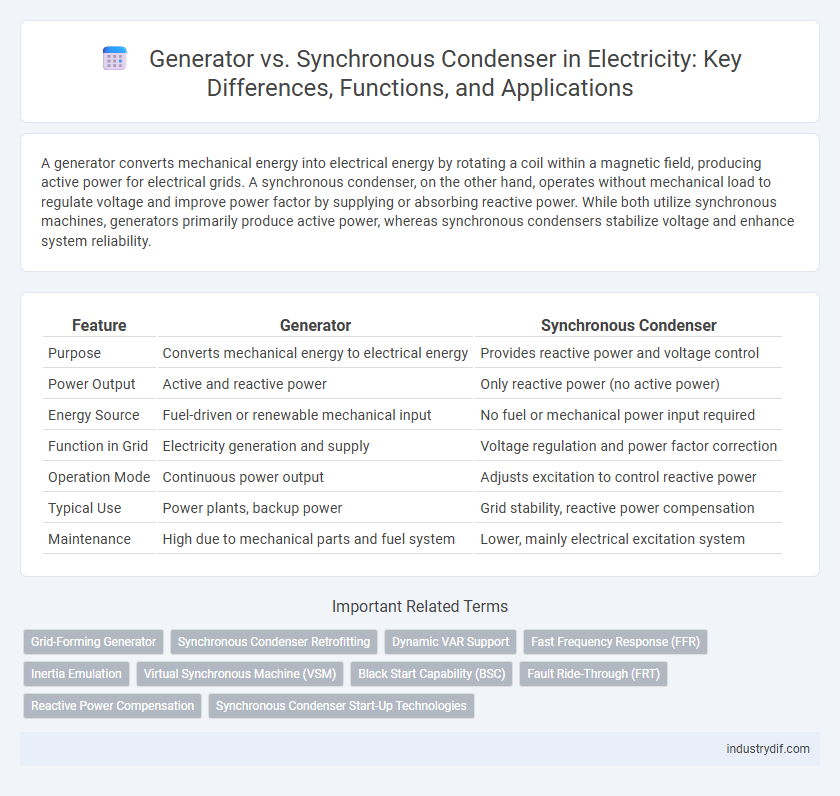

Generator vs Synchronous Condenser Infographic
