industrydif.com Transmission lines typically use conventional conductors like copper or aluminum, which experience resistive losses and require thicker cables to handle high power loads. Superconducting lines, carrying current with zero electrical resistance, significantly reduce energy losses and enable compact, high-capacity power transmission. The primary challenge for superconducting lines lies in maintaining cryogenic temperatures to preserve their superconducting properties.
Table of Comparison
| Feature | Transmission Lines | Superconducting Lines |
|---|---|---|
| Conductivity | Resistive; energy loss due to resistance | Zero resistance; near-zero energy loss |
| Operating Temperature | Ambient temperature (20-40degC) | Cryogenic temperatures (-196degC to -269degC) |
| Energy Efficiency | Efficiency ~90-95% | Efficiency ~99%+ |
| Current Capacity | Limited by resistive heating and material limits | Can carry 5-10 times higher current |
| Installation Cost | Lower initial cost; mature technology | High initial cost; advanced materials and cooling |
| Maintenance | Regular maintenance required | Complex; requires cryogenic system upkeep |
| Environmental Impact | Moderate; some power loss and heat emissions | Lower energy waste; reduced carbon footprint potential |
| Applications | Long-distance power transmission | High capacity networks, urban grids, specialty uses |
Introduction to Transmission and Superconducting Lines
Transmission lines are essential components of electrical grids, designed to transport high-voltage electricity over long distances with minimal energy loss using conductive materials like aluminum or copper. Superconducting lines, in contrast, utilize materials that exhibit zero electrical resistance at cryogenic temperatures, enabling near-lossless power transmission and higher current capacities compared to conventional conductors. The integration of superconducting lines promises significant improvements in efficiency, grid stability, and reduced physical footprint of power infrastructure.
Fundamentals of Electric Power Transmission
Transmission lines rely on conductive materials such as aluminum and copper to transport electric power, while superconducting lines utilize materials that exhibit zero electrical resistance below critical temperatures, enabling near lossless power flow. Conventional transmission lines suffer from resistive losses proportional to the square of the current, limiting efficiency over long distances and increasing operational costs. Superconducting lines significantly reduce resistive losses, increase current-carrying capacity, and enhance grid reliability, but require cryogenic cooling systems to maintain superconducting states.
How Superconducting Lines Work
Superconducting transmission lines conduct electricity with zero electrical resistance by cooling materials below their critical temperature, typically using liquid nitrogen or helium. This allows for nearly lossless energy transfer and significantly higher current capacity compared to conventional copper or aluminum lines. The absence of resistive heating reduces energy waste and improves overall grid efficiency, enabling more compact and efficient power infrastructure.
Material Differences in Conductors
Transmission lines typically use copper or aluminum conductors, valued for their good conductivity, mechanical strength, and cost-effectiveness. Superconducting lines utilize materials like niobium-titanium or high-temperature ceramic superconductors, which exhibit zero electrical resistance below critical temperatures. These material differences in conductors directly impact energy losses, efficiency, and the cooling infrastructure required for superconducting systems.
Efficiency and Energy Loss Comparison
Transmission lines made of conventional conductors like copper or aluminum exhibit significant energy losses due to electrical resistance, typically ranging from 5% to 10% over long distances. Superconducting lines, operating at cryogenic temperatures, virtually eliminate resistive losses, achieving near-zero energy dissipation and greatly enhancing transmission efficiency. This stark contrast positions superconducting technology as a revolutionary solution for reducing energy waste in power grid infrastructure.
Infrastructure and Installation Challenges
Transmission lines require extensive infrastructure including towers, insulators, and right-of-way corridors, often leading to significant land use and environmental concerns during installation. Superconducting lines, while offering minimal electrical resistance and higher efficiency, face installation challenges such as cryogenic cooling systems, specialized insulation, and a need for durable, flexible cryostats to maintain low temperatures. The complexity and high cost of superconducting infrastructure limit widespread deployment compared to traditional transmission lines that rely on mature, well-established installation techniques.
Cost Analysis: Transmission vs. Superconducting Lines
Transmission lines involve substantial costs related to resistive energy losses, requiring regular maintenance and infrastructure upgrades. Superconducting lines, though featuring higher initial installation expenses due to cryogenic cooling systems and specialized materials, offer dramatically reduced operational costs by virtually eliminating electrical resistance and energy losses. Long-term cost analysis indicates that superconducting lines can provide significant economic advantages in high-capacity, long-distance power transmission by enhancing efficiency and reducing energy waste.
Environmental Impact and Sustainability
Transmission lines constructed with traditional conductive materials like copper or aluminum contribute to significant energy losses and greenhouse gas emissions due to resistive heating, impacting environmental sustainability negatively. Superconducting lines, operating at near-zero electrical resistance, offer drastically reduced energy losses, leading to lower carbon footprints and enhanced efficiency in power delivery systems. By integrating superconducting technology, the electricity grid can achieve improved sustainability through minimized resource consumption and reduced ecological disturbance compared to conventional transmission infrastructure.
Current Industry Applications and Case Studies
Transmission lines remain the backbone of electrical power distribution, extensively used in urban and rural grids due to their established infrastructure and cost-effectiveness. Superconducting lines, though limited in current industry applications, show promising case studies such as the Long Island Power Authority project where high-temperature superconductors enabled reduced energy losses and increased capacity in dense urban areas. Recent deployments highlight superconducting lines' potential to revolutionize grid efficiency, but widespread adoption is constrained by cryogenic cooling requirements and initial investment costs.
Future Trends in Power Transmission Technologies
Future trends in power transmission technologies emphasize a shift from conventional transmission lines to superconducting lines due to their near-zero electrical resistance and significantly reduced energy losses. Superconducting cables enable higher current densities and compact infrastructure, addressing urban space constraints and enhancing grid reliability. Advances in cryogenics and high-temperature superconductors are accelerating the commercial deployment of superconducting lines, promising a revolution in efficient, sustainable electricity transmission.
Related Important Terms
High-Temperature Superconducting (HTS) Cables
High-Temperature Superconducting (HTS) cables offer significantly lower electrical resistance compared to conventional transmission lines, enabling efficient power delivery with minimal energy loss and reduced thermal dissipation. These superconducting lines also support higher current densities and compact infrastructure, enhancing grid capacity and reliability while minimizing environmental impact.
Resistive Losses (Conventional Lines)
Transmission lines experience significant resistive losses due to the inherent electrical resistance of conductive materials like copper or aluminum, leading to energy dissipation as heat during power transmission. Superconducting lines eliminate these resistive losses entirely by allowing electrical current to flow without resistance at cryogenic temperatures, significantly improving efficiency and reducing operational costs.
Fault Current Limiting (Superconductors)
Superconducting transmission lines inherently limit fault currents by rapidly transitioning from a zero-resistance state to a resistive state during overloads, thereby protecting grid infrastructure. This fault current limiting capability reduces the need for bulky protective equipment and enhances system stability compared to conventional transmission lines.
Cryogenic Cooling Systems
Transmission lines require cryogenic cooling systems to maintain superconducting properties in superconducting lines, significantly reducing electrical resistance and energy losses compared to conventional lines. Cryogenic cooling, typically using liquid nitrogen or helium, enables superconducting cables to operate efficiently at ultra-low temperatures, improving power capacity and grid stability.
AC Loss (Superconductor-Specific)
Transmission lines experience significant energy dissipation due to resistive heating and electromagnetic radiation, whereas superconducting lines minimize AC loss through zero electrical resistance and reduced hysteresis in superconducting materials. However, superconducting AC losses still occur from flux flow, coupling currents, and eddy currents within the superconductor's multifilamentary structure and surrounding stabilizers.
Bulk Power Transfer Capability
Transmission lines composed of conventional conductive materials like copper and aluminum are limited by resistive losses, restricting their bulk power transfer capability to several gigawatts over long distances. Superconducting lines, operating near cryogenic temperatures, enable near-zero electrical resistance, significantly increasing bulk power transfer capacity by enabling higher current densities and reducing energy losses, thereby facilitating more efficient and higher-capacity long-distance electricity transmission.
Line Sag Mitigation
Superconducting transmission lines significantly reduce line sag by maintaining near-zero electrical resistance, which minimizes heat generation and thermal expansion of conductors under high current loads. Conventional transmission lines experience increased sag due to resistive heating, causing conductor elongation and potential clearance violations, whereas superconducting cables maintain stable mechanical tension, enhancing grid reliability and safety.
Zero Resistance State
Transmission lines typically experience energy losses due to electrical resistance, resulting in decreased efficiency over long distances. Superconducting lines achieve a zero resistance state below critical temperatures, enabling near-lossless power transmission and significantly reducing energy dissipation.
Transmission Corridor Optimization
Transmission corridor optimization in traditional transmission lines relies on managing right-of-way widths and minimizing environmental impact through tower designs and line routing. Superconducting lines enable narrower corridors due to higher current capacity and reduced energy losses, allowing for more efficient land use and reduced infrastructure footprints.
Critical Current Density (Jc)
Transmission lines rely on conventional conductors with limited critical current density (Jc), typically governed by resistive losses and thermal constraints, whereas superconducting lines exhibit significantly higher Jc values due to zero electrical resistance below critical temperatures, enabling greater current capacities and reduced energy losses. Enhancing Jc in superconducting materials is crucial for advancing power grid efficiency and facilitating high-capacity electricity transmission over long distances.

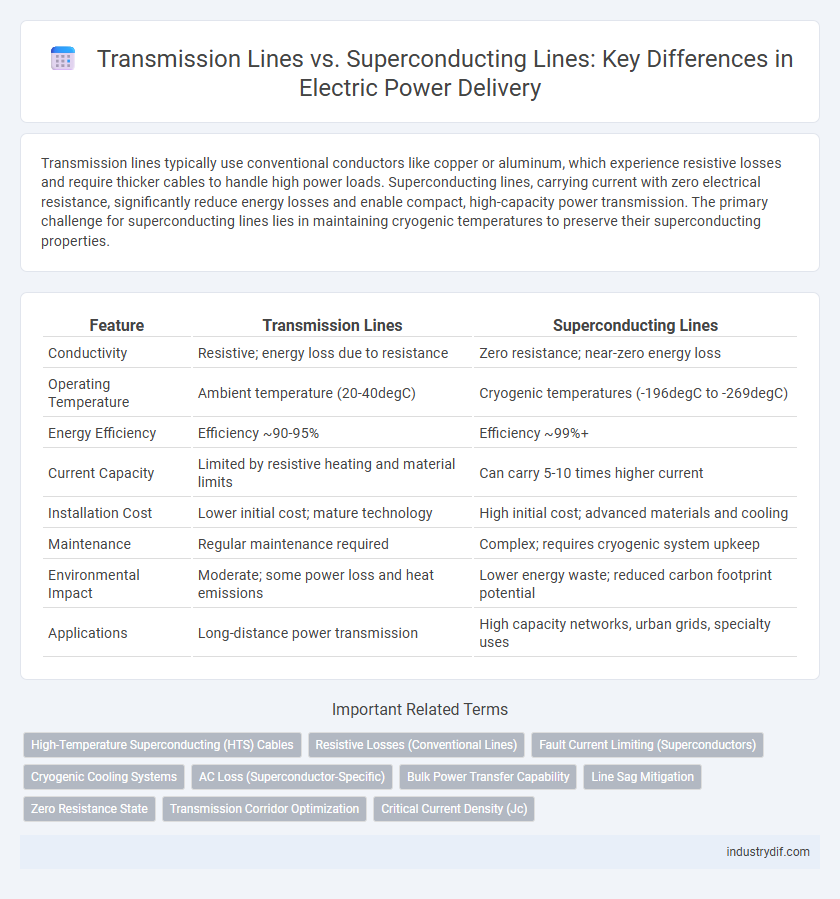

Transmission lines vs Superconducting lines Infographic
