industrydif.com Single-phase systems are commonly used for residential electricity supply, providing a simpler and cost-effective solution for low power demands. Microgrids offer advanced energy management by integrating multiple power sources, enabling increased reliability and flexibility for communities or commercial users. Comparing single-phase systems with microgrids highlights the transition from conventional power delivery to smarter, decentralized energy networks.
Table of Comparison
| Feature | Single Phase | Microgrid |
|---|---|---|
| Definition | Electric power supplied via one alternating current (AC) phase. | Localized energy system that can operate independently or with the main grid. |
| Power Capacity | Typically up to 10 kW for residential use. | Varies from kW to MW, flexible scaling based on demand. |
| Reliability | Dependent on main grid stability; prone to outages. | Higher reliability with backup sources and islanding capability. |
| Energy Sources | Primarily centralized fossil fuels or renewable-based grid supply. | Integrates multiple sources: solar, wind, diesel, storage. |
| Control | Limited control; managed by utility providers. | Advanced control systems for energy management and demand response. |
| Cost | Lower initial installation cost; ongoing utility fees. | Higher upfront cost; potential savings from energy independence. |
| Environmental Impact | Varies; depends on main grid energy mix. | Promotes renewable integration; reduces carbon footprint. |
Definition of Single Phase Systems
Single phase systems deliver alternating current (AC) through a single conductor and a neutral wire, primarily used in residential and light commercial applications for powering standard household appliances. These systems operate at voltages typically around 120V or 240V depending on the region, providing a straightforward and cost-effective energy solution. Unlike microgrids, single phase systems lack localized control or energy sources, relying entirely on the centralized utility grid for power supply.
Understanding Microgrid Technology
Microgrid technology enables localized energy generation, storage, and distribution, enhancing resilience and efficiency beyond traditional single-phase systems. Unlike conventional single-phase electricity that relies on a centralized grid, microgrids integrate diverse energy sources such as solar panels, wind turbines, and battery storage to support autonomous operation. This decentralized approach ensures continuous power supply during outages and optimizes energy usage tailored to specific community or facility needs.
Key Differences Between Single Phase and Microgrid
Single phase power systems deliver alternating current through one live wire and a neutral, typically used for residential and light commercial applications with limited power demand. Microgrids integrate multiple energy sources, including renewable generation and energy storage, operating independently or alongside the main grid to enhance reliability and resilience. The key differences lie in scale, complexity, and functionality, with microgrids supporting decentralized energy management and increased grid stability compared to the simpler single phase systems.
Advantages of Single Phase Electricity
Single phase electricity offers simplicity and cost-effectiveness for residential and light commercial applications due to lower installation and maintenance expenses compared to microgrids. Its widespread availability and compatibility with standard household appliances make it an efficient choice for consistent power delivery in urban and suburban settings. Moreover, single phase systems require less complex infrastructure, resulting in easier troubleshooting and faster repair times.
Benefits of Implementing Microgrids
Microgrids enhance energy reliability by enabling localized electricity generation and storage, reducing dependence on single-phase utility lines vulnerable to outages. They optimize energy efficiency through integration of renewable sources such as solar and wind, lowering carbon emissions and operational costs. Furthermore, microgrids support grid resilience by isolating disturbances and maintaining power supply during emergencies or peak demand periods.
Applications of Single Phase Power
Single phase power is primarily used in residential and light commercial applications where energy demand is moderate and load balance is less complex. It efficiently powers household appliances, lighting systems, and small office equipment due to its simplicity and cost-effectiveness. In contrast to microgrids, single phase setups do not support large-scale industrial operations or complex energy management systems.
Typical Use Cases for Microgrids
Microgrids are typically deployed in remote communities, industrial complexes, and critical infrastructure facilities where reliable and resilient power supply is essential. They integrate renewable energy sources, energy storage, and local generation to enhance grid stability and reduce dependence on centralized single-phase power systems. These systems also provide backup during outages and support energy management in campuses, military bases, and disaster-prone areas.
Single Phase vs Microgrid: Efficiency Comparison
Single phase electrical systems typically exhibit lower efficiency due to limited capacity and higher energy losses over long distances compared to microgrids. Microgrids enhance energy efficiency by integrating distributed generation sources, smart controls, and energy storage, optimizing power distribution and reducing transmission losses. The decentralized nature of microgrids enables better demand response and resilience, resulting in significant energy savings and improved overall system performance.
Cost Considerations in Deployment
Single-phase systems typically incur lower upfront installation costs due to simpler infrastructure, making them suitable for small residential or low-demand applications. Microgrids involve higher initial capital expenditure for advanced components like inverters, energy management systems, and storage solutions, but offer cost savings over time through enhanced energy efficiency and resilience. Long-term financial benefits of microgrids include reduced reliance on grid power and potential integration of renewable energy sources, which can offset the higher deployment costs.
Future Trends in Power Distribution Systems
Single phase systems remain dominant in residential power delivery due to their simplicity and cost-effectiveness, but microgrids are rapidly advancing as the future of power distribution by enabling localized energy generation, storage, and real-time management. Integration of renewable energy sources and smart grid technologies within microgrids enhances resilience, reduces transmission losses, and allows flexible load balancing across diverse demand profiles. Emerging trends emphasize decentralized energy systems, with microgrids facilitating seamless interoperability between distributed energy resources and enabling communities to achieve greater energy independence and sustainability.
Related Important Terms
Grid-Tied Microgrid
Grid-tied microgrids integrate renewable energy sources and localized power generation with the main electrical grid, enhancing reliability and efficiency compared to traditional single-phase systems that rely solely on centralized power. These microgrids enable seamless energy flow, real-time load balancing, and improved resilience during grid outages, optimizing electricity management for residential and commercial applications.
Single Phase Islanding
Single phase islanding occurs when a single-phase electrical system continues to power a local load independently from the main grid, posing challenges for microgrid stability and safety. Detecting and managing single phase islanding is critical to prevent damage and ensure seamless integration within microgrid systems.
Peer-to-Peer Energy Trading
Single-phase systems primarily support residential electricity needs with centralized grid connections, while microgrids enable localized energy generation and storage, facilitating peer-to-peer energy trading. This decentralized approach enhances grid resilience and allows consumers to buy and sell renewable energy directly, optimizing energy use and reducing transmission losses.
Microgrid Inverter Synchronization
Microgrid inverter synchronization ensures stable power quality by matching voltage, frequency, and phase with the main grid or other microgrid sources, preventing disturbances during islanded or grid-connected operation. Advanced synchronization techniques like phase-locked loops (PLLs) and droop control optimize energy management and enhance grid resilience compared to single-phase systems.
Phase Balancing Algorithms
Phase balancing algorithms in single phase systems optimize load distribution by minimizing voltage fluctuations and losses, ensuring stable power delivery to residential or small commercial users. In microgrids, advanced phase balancing algorithms dynamically manage multiple generation sources and loads across three-phase networks to enhance efficiency, reliability, and integration of renewable energy.
Decentralized Single Phase Control
Decentralized single phase control in microgrids enables efficient management of distributed energy resources by allowing individual nodes to regulate voltage and frequency autonomously, enhancing grid resilience and reducing dependency on centralized control systems. This approach optimizes real-time power flow, minimizes energy losses, and facilitates seamless integration of renewable sources within single phase electrical networks.
Swarm Microgrid Architecture
Swarm Microgrid Architecture leverages decentralized, peer-to-peer energy exchange among multiple nodes, ensuring greater resilience and scalability compared to traditional Single Phase systems limited to centralized generation and distribution. This architecture optimizes efficiency by dynamically balancing supply and demand across distributed energy resources, enhancing grid stability and renewable integration.
Rapid Voltage Regulation Modules
Rapid Voltage Regulation Modules in single-phase systems provide localized voltage stability but may face limitations under fluctuating loads, whereas microgrids integrate these modules to dynamically manage voltage across multiple phases and distributed energy resources, enhancing overall reliability and power quality. Microgrid architectures leverage advanced control algorithms and real-time monitoring to optimize voltage regulation, reducing disruptions and improving resilience in decentralized electricity networks.
Plug-and-Play Microgrid Interface
The plug-and-play microgrid interface enables seamless integration of renewable energy sources and storage systems, offering greater flexibility and autonomy compared to traditional single-phase systems. This interface simplifies connection and enhances grid resilience by facilitating real-time load management and distributed energy resource coordination.
Single Phase Microgrid Edge Device
Single phase microgrid edge devices enable localized control and efficient management of electricity flow within a microgrid, enhancing reliability and energy optimization for residential or small commercial applications. These devices integrate real-time monitoring, load balancing, and fault detection to maintain stable single-phase power distribution while supporting renewable energy sources and battery storage systems.

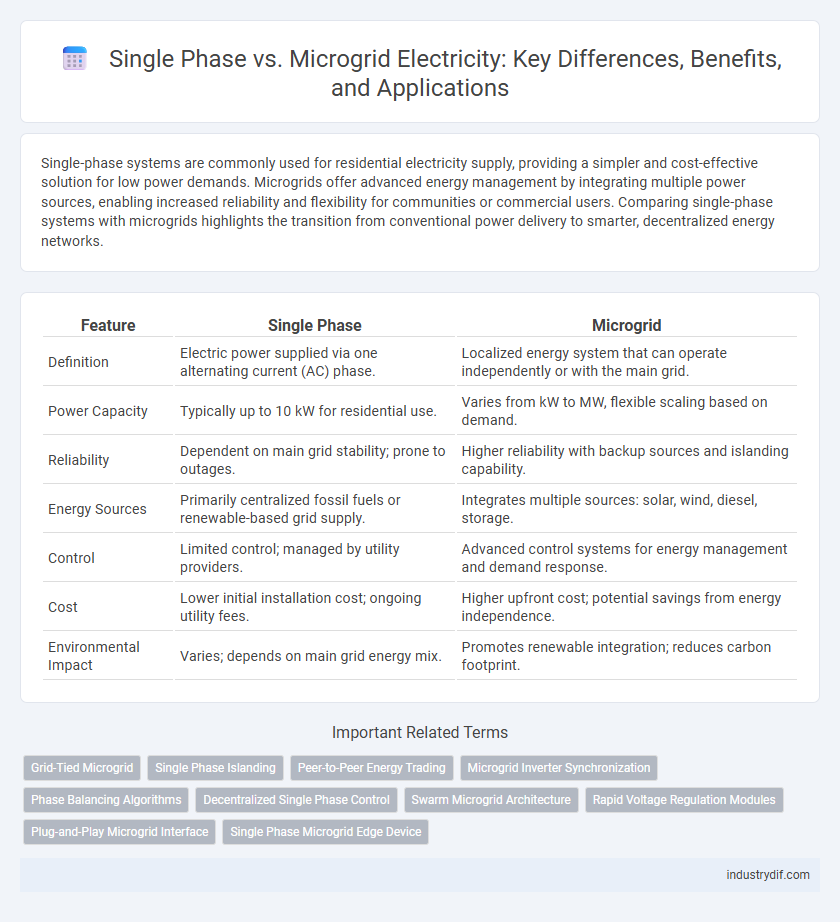

Single Phase vs Microgrid Infographic
