industrydif.com Transmission lines transport electrical power over long distances, typically operating at high voltages to reduce energy losses and improve efficiency. A supergrid integrates multiple transmission lines into a vast, interconnected network designed to balance supply and demand across large geographic regions, enhancing grid reliability and enabling renewable energy integration. While transmission lines provide the foundational infrastructure, supergrids optimize power flow and facilitate cross-border electricity trading on a continental scale.
Table of Comparison
| Feature | Transmission Line | Supergrid |
|---|---|---|
| Definition | High-voltage cables transmitting electricity over short to medium distances | Extensive, interconnected high-voltage network spanning countries or continents |
| Voltage Level | Typically 110 kV to 765 kV | Ultra-high voltage, often 800 kV to 1,100 kV or more |
| Purpose | Transfer power from substations to local distribution networks | Integrate renewable energy sources and balance load across large regions |
| Coverage | Regional or national scale | Cross-national or continental scale |
| Capacity | Lower, varies by line design and voltage | Higher, supports massive energy transfer |
| Grid Stability | Supports local stability | Enhances overall grid resilience and reliability |
| Flexibility | Limited interconnection | Highly integrated, enabling energy trade across regions |
| Technology | AC or lower voltage DC transmission | Predominantly ultra-high voltage DC (UHVDC) technology |
| Cost | Moderate construction and maintenance costs | High initial investment but cost-effective over long distances |
| Environmental Impact | Moderate, depending on route and design | Reduced carbon footprint by enabling renewable integration |
Overview of Transmission Lines and Supergrids
Transmission lines are conventional infrastructure designed to transport electrical power over short to medium distances, typically operating at high voltage to reduce energy loss. Supergrids represent an advanced, large-scale network that interconnects multiple regions or countries, enabling efficient long-distance electricity transfer and enhancing grid stability through diverse energy sources integration. The development of supergrids facilitates renewable energy distribution and improves resilience against outages compared to traditional transmission lines.
Key Components of Transmission Lines
Transmission lines consist of conductors, insulators, towers, and grounding systems designed to efficiently transport high-voltage electricity over long distances. Key components such as aluminum or copper conductors carry electrical current, while ceramic or polymer insulators prevent unwanted current flow to towers made of steel or aluminum for structural support. Advanced technologies in transmission lines improve grid reliability, reduce losses, and enable integration with supergrids that interconnect regional networks to optimize electricity distribution.
Defining the Supergrid: Concept and Scope
The supergrid is a large-scale, high-capacity electricity transmission network designed to connect multiple regional grids across vast geographical areas. It enables the efficient transfer of renewable energy resources, balancing supply and demand over long distances while reducing transmission losses compared to conventional transmission lines. Supergrids integrate advanced technologies such as high-voltage direct current (HVDC) systems and smart grid controls to optimize grid resilience and reliability.
Voltage Levels: Transmission Lines vs Supergrid
Transmission lines typically operate at voltage levels ranging from 110 kV to 765 kV, optimized for regional power distribution with minimal losses. Supergrids function at ultra-high voltage levels, often exceeding 800 kV and reaching up to 1200 kV, enabling efficient long-distance transmission with enhanced grid stability. Higher voltage in supergrids reduces current flow, minimizing energy losses and supporting intercontinental electricity exchange.
Geographical Coverage and Grid Integration
Transmission lines typically connect localized generation sources to nearby distribution networks, covering limited geographical areas and supporting regional grid integration. Supergrids span vast distances, often across countries or continents, enabling large-scale renewable energy transfer and enhancing grid interconnectivity. Their extensive geographical coverage facilitates better resource balancing and resilience across diverse energy markets.
Efficiency and Power Loss Comparison
Transmission lines typically experience higher power losses due to resistance and longer distances, reducing overall efficiency in electricity delivery. Supergrids, designed with advanced high-voltage direct current (HVDC) technology, minimize energy dissipation and handle large power transfers more efficiently. This results in significantly lower line losses and improved grid stability compared to conventional transmission lines.
Infrastructure Requirements and Technology
Transmission lines require extensive conductor materials, towers, and substations to maintain voltage levels across distances, often relying on traditional AC technology with insulation and right-of-way clearances. Supergrids incorporate advanced HVDC (High Voltage Direct Current) technology, enabling efficient long-distance, cross-border electricity transfer with reduced line losses and enhanced grid stability, demanding sophisticated converter stations and robust grid management systems. The infrastructure for supergrids is more complex, integrating smart grid technologies and multi-terminal HVDC links, which optimize power flow and facilitate renewable energy integration on a continental scale.
Reliability and Resilience in Power Delivery
Transmission lines are critical for delivering electricity over long distances but can be vulnerable to disruptions from weather events or physical damage. Supergrids integrate multiple transmission networks across regions, enhancing reliability by enabling alternative power routes during failures and increasing resilience through distributed energy sources. This interconnected approach reduces blackout risks and supports rapid recovery in power delivery systems.
Environmental and Economic Impact
Transmission lines require extensive land use and can disrupt ecosystems, whereas supergrids, designed for high-capacity and long-distance power transfer, minimize the environmental footprint by optimizing route efficiency and integrating renewable energy sources. Economically, supergrids reduce energy losses and operational costs over time, offering a more sustainable investment compared to traditional transmission lines, which often face higher maintenance expenses and energy dissipation. The shift towards supergrid infrastructure supports large-scale renewable integration, lowering carbon emissions and promoting energy security with long-term cost benefits.
Future Trends and Innovations in Electricity Transmission
Future trends in electricity transmission emphasize the integration of supergrids with advanced transmission lines to enhance grid reliability and accommodate renewable energy sources. Innovations such as high-voltage direct current (HVDC) technology, smart grid communications, and real-time monitoring systems are driving efficiency and reducing transmission losses across extensive supergrid networks. This evolution supports large-scale energy transfer across regions, enabling a decentralized, resilient power infrastructure for sustainable electricity distribution.
Related Important Terms
Hybrid AC/DC Transmission
Hybrid AC/DC transmission integrates alternating current (AC) and direct current (DC) technologies to optimize power flow, enhance grid stability, and reduce transmission losses compared to traditional AC-only lines. This approach enables supergrids to efficiently transfer large-scale renewable energy across long distances while maintaining the flexibility and reliability of conventional transmission networks.
Multi-terminal HVDC
Multi-terminal HVDC systems enable efficient power flow control and improved grid stability by connecting multiple transmission lines within a supergrid framework, surpassing traditional point-to-point transmission line limitations. These advanced networks facilitate large-scale integration of renewable energy sources and enhance cross-border electricity exchange, reducing transmission losses and congestion.
Mesh Grid Topology
Mesh grid topology in transmission lines enables multiple pathways for electricity flow, enhancing reliability and reducing outages by rerouting power during failures. Supergrids leverage this mesh structure to integrate renewable energy sources across regions, optimizing long-distance transmission efficiency and grid resilience.
Dynamic Line Rating
Dynamic Line Rating (DLR) enhances the capacity and reliability of transmission lines by continuously adjusting line ratings based on real-time environmental and electrical conditions, whereas supergrids rely on high-capacity, interconnected networks that integrate renewable energy sources across regions. Implementing DLR optimizes existing transmission infrastructure utilization, reducing congestion and enabling more efficient energy flow within both traditional transmission lines and advanced supergrid systems.
Superconducting Cables
Superconducting cables in a supergrid enable near-zero resistance power transmission, drastically reducing energy losses compared to conventional transmission lines. This technology supports higher current capacities and enhances grid stability, facilitating efficient long-distance electricity distribution and integration of renewable energy sources.
Grid-forming Inverters
Grid-forming inverters play a crucial role in both transmission lines and supergrids by providing voltage and frequency regulation essential for stable power flow and integrating renewable energy sources. Their ability to create and maintain grid stability enables enhanced resilience and flexibility in supergrids, surpassing traditional transmission line infrastructures.
Cross-border Interconnectors
Cross-border interconnectors in transmission lines enable efficient electricity exchange between countries, enhancing grid stability and energy security by balancing supply and demand across regions. Supergrids expand this concept at a continental scale, integrating multiple interconnectors with advanced technologies to optimize renewable energy distribution and reduce carbon emissions globally.
Overlay Supergrid
Transmission lines serve as fundamental infrastructure for regional power distribution, while overlay supergrids integrate multiple transmission networks into a unified, high-capacity system enabling efficient long-distance electricity transfer and grid stability. Overlay supergrids optimize renewable energy integration and reduce transmission losses by connecting diverse generation sources across vast geographical areas.
Real-time Grid Balancing
Transmission lines facilitate the transfer of electricity over long distances but face limitations in real-time grid balancing due to congestion and capacity constraints. Supergrids, integrating high-voltage direct current (HVDC) technology across multiple regions, enhance real-time grid stability by allowing rapid power flow adjustments and efficient redistribution of renewable energy sources.
Sector Coupling Integration
Transmission lines serve as the backbone for regional electricity distribution, facilitating the flow of power between generation sources and end-users, while supergrids enable large-scale, cross-border energy exchange that enhances sector coupling by integrating electricity with heating, transportation, and industrial sectors. Supergrids support the seamless integration of renewable energy sources and flexible demand response, optimizing energy efficiency and grid stability across multiple interconnected sectors.

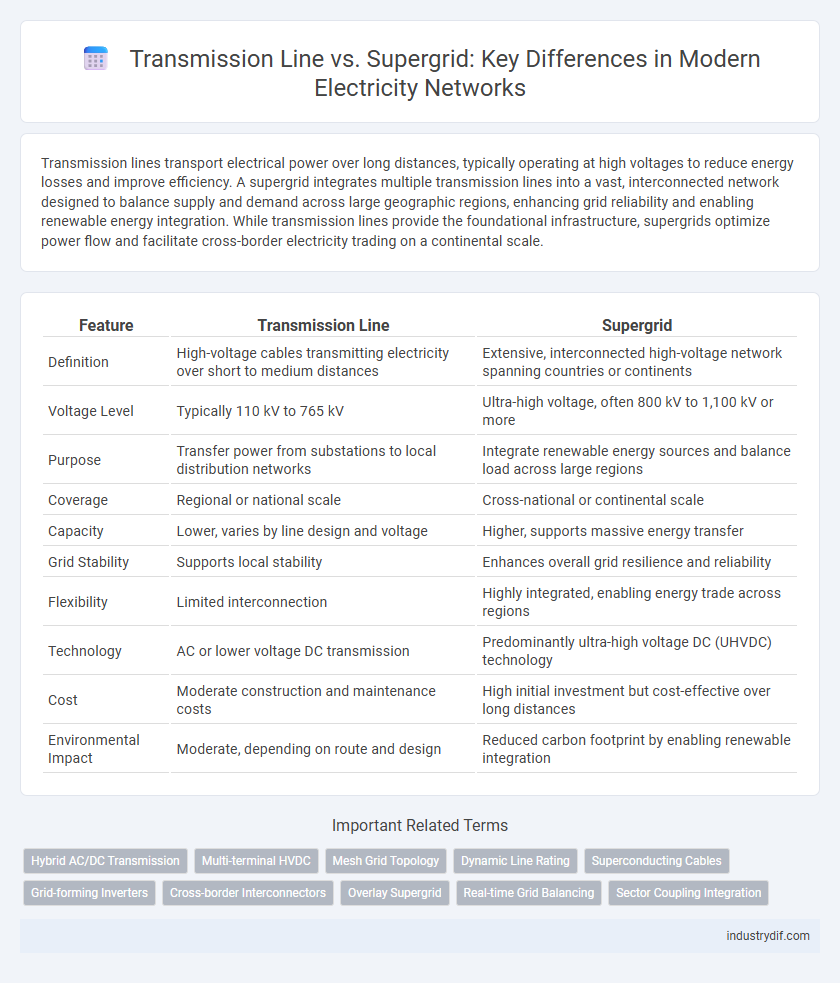

Transmission Line vs Supergrid Infographic
