industrydif.com A brownout is a deliberate, temporary reduction in voltage supplied by the utility to prevent a full blackout during peak demand, often lasting minutes or hours. In contrast, a voltage sag is a brief, unintentional drop in voltage, typically lasting milliseconds to seconds, caused by sudden increases in load or faults in the power system. Both phenomena affect electrical equipment performance but differ in duration, cause, and control.
Table of Comparison
| Aspect | Brownout | Voltage Sag |
|---|---|---|
| Definition | Partial, sustained drop in voltage supply lasting minutes to hours | Brief, transient drop in voltage typically lasting milliseconds to seconds |
| Voltage Level | Voltage falls between 10% to 90% of nominal level | Voltage drops 10% to 90% below nominal level temporarily |
| Duration | Minutes to hours | Milliseconds to seconds |
| Common Causes | Overloaded power grids, heavy electrical equipment startup | Short circuits, motor startups, or utility faults |
| Impact on Equipment | Reduced performance, potential damage to sensitive electronics | Possible malfunction, temporary data loss, equipment resets |
| Detection | Monitored via sustained voltage monitoring devices | Detected by transient voltage analyzers or power quality meters |
| Mitigation | Use of voltage regulators, uninterruptible power supplies (UPS) | Installation of surge protectors, power conditioners |
Understanding Brownouts: Definition and Causes
Brownouts refer to a deliberate or unintentional drop in voltage supply, typically ranging from 10% to 30% below the nominal voltage, causing reduced electrical performance and dimmed lighting. Common causes of brownouts include high demand on the power grid, equipment faults, or utility companies' efforts to prevent full outages during peak load periods. Unlike voltage sags, which are brief and often last less than a second, brownouts persist longer and can lead to overheating or malfunction of electrical devices.
What is a Voltage Sag? Key Characteristics
A voltage sag is a short-duration drop in voltage levels, typically lasting from a few milliseconds to several seconds, where the voltage decreases to between 10% and 90% of the nominal voltage. This phenomenon differs from a brownout, which involves a prolonged, intentional reduction in voltage to manage demand. Voltage sags are commonly caused by sudden increases in load or short circuits and can disrupt sensitive electronic equipment and processes.
Brownout vs Voltage Sag: Technical Differences
Brownout refers to a sustained drop in voltage levels, typically lasting minutes to hours, causing dimming lights and reduced power in electrical devices. Voltage sag, or voltage dip, is a short-duration decrease in voltage, usually lasting milliseconds to a few seconds, often triggered by sudden high-load events or faults. Unlike brownouts, voltage sags are transient and recover quickly without long-term impact on the electrical system.
Common Industry Sources of Brownouts
Common industry sources of brownouts include prolonged high demand on electrical grids, defective transformers, and deliberate utility voltage reductions to prevent full outages during peak load periods. Voltage sags, on the other hand, are typically caused by short-term faults such as lightning strikes, motor startups, or temporary short circuits. Understanding these distinctions helps businesses implement targeted power quality solutions to mitigate equipment damage and operational disruptions.
Common Triggers for Voltage Sags in Power Systems
Voltage sags commonly occur due to sudden large load changes, short circuits, or starting of heavy electrical equipment, causing a brief drop in voltage levels within power systems. Brownouts differ as they involve sustained voltage reductions often initiated intentionally to conserve energy during peak demand or system stress. Understanding these triggers aids in designing protective measures like surge arresters and voltage regulators to maintain power quality and prevent equipment damage.
Impact of Brownouts on Electrical Equipment
Brownouts cause prolonged voltage drops that can lead to overheating, reduced efficiency, and premature failure of electrical equipment, particularly motors and transformers. Unlike brief voltage sags, brownouts subject devices to extended low-voltage conditions, increasing the risk of insulation damage and component degradation. Sensitive electronics may experience data loss and operational disruptions during brownout events, highlighting the need for voltage regulation and surge protection systems.
Effects of Voltage Sags on Industrial Operations
Voltage sags cause short-duration reductions in voltage levels, leading to equipment malfunctions and unexpected shutdowns in industrial operations. Brownouts, characterized by extended low voltage, result in decreased motor efficiency and potential overheating. Both conditions disrupt manufacturing processes, increase maintenance costs, and reduce overall productivity in industrial facilities.
Detection and Monitoring Techniques
Brownout detection primarily utilizes voltage level monitoring through smart meters and digital relays to identify sustained voltage drops below nominal values. Voltage sag monitoring employs fast-sampling power quality analyzers and waveform sensors to capture short-duration voltage decreases caused by transient faults or heavy loads. Advanced monitoring systems integrate real-time data analytics and IoT-enabled sensors to improve detection accuracy and enable proactive grid management.
Mitigation Strategies for Brownouts and Voltage Sags
Mitigation strategies for brownouts and voltage sags include using uninterruptible power supplies (UPS) and voltage regulators to stabilize power quality. Implementing automatic transfer switches ensures seamless switching to backup power sources during voltage dips. Regular maintenance of electrical infrastructure and installation of surge protection devices further reduce the risk and impact of voltage fluctuations.
Industry Standards and Regulations for Power Quality
Industry standards such as IEEE 1159 and IEC 61000-4-30 define voltage sags as short-duration reductions in voltage levels, typically lasting from milliseconds to a few seconds, whereas brownouts are longer-duration voltage reductions often caused by utility grid constraints. Power quality regulations emphasize precise monitoring and mitigation strategies for voltage sags due to their impact on sensitive industrial equipment, while brownouts require different corrective measures aligned with utility operation standards. Compliance with these standards ensures improved electrical system reliability and protects industrial processes from costly downtime and equipment damage.
Related Important Terms
Intentional Brownout
Intentional brownouts are deliberate reductions in voltage implemented by utility companies to prevent complete power outages during peak demand, distinguishing them from unintentional voltage sags caused by transient faults or sudden load changes. These controlled voltage reductions maintain grid stability by lowering power consumption, whereas voltage sags typically result in brief, involuntary drops that can disrupt sensitive electronic equipment.
Voltage Sag Duration
Voltage sag duration typically lasts from a few milliseconds to several seconds, significantly shorter than a brownout, which can persist for minutes or hours. Voltage sags cause brief dips in electrical power, often under 90% of nominal voltage, whereas brownouts represent prolonged reductions in voltage levels affecting overall system stability.
Voltage Dip Severity
Voltage sags typically involve short-duration drops in voltage by 10% to 90%, often lasting milliseconds to seconds, with moderate impact severity on electrical systems. Brownouts represent prolonged, intentional reductions in voltage supply, generally above the threshold that causes equipment failure, causing more sustained but less severe voltage dips compared to sudden outages.
Load Shedding Brownout
Load shedding brownouts occur when electricity supply is intentionally reduced to manage grid stability, causing a deliberate drop in voltage that prevents system overloads, unlike voltage sags which are short, unplanned voltage dips caused by faults or sudden high demands. These brownouts help balance load distribution during peak usage periods, protecting electrical equipment by avoiding abrupt power interruptions and maintaining essential services.
Temporary Voltage Reduction (TVR)
Temporary Voltage Reduction (TVR) in electricity involves a short-term drop in voltage levels, with brownouts characterized by a sustained voltage dip causing noticeable lighting dimming, whereas voltage sags are brief, often less than a few seconds, and can result from sudden load increases or faults. Both phenomena impact sensitive electrical equipment but differ mainly in duration and severity, with brownouts typically lasting longer and causing more significant power quality issues.
Sag Ride-through Capability
Voltage sag refers to a short-duration drop in voltage levels lasting from a few milliseconds to a few seconds, often caused by sudden increases in electrical load or faults. Brownout describes a longer-term voltage reduction, and sag ride-through capability in electrical equipment ensures continuous operation during brief voltage sags, preventing disruptions and damage.
Dynamic Voltage Restorer (DVR)
Brownouts refer to sustained voltage reductions causing dimmed lighting and slowed equipment, while voltage sags are brief drops in voltage; Dynamic Voltage Restorers (DVR) effectively mitigate both by injecting compensating voltage in real-time to maintain stable power quality and prevent equipment malfunction. DVR systems rapidly detect voltage anomalies and dynamically restore voltage levels within milliseconds, ensuring sensitive industrial processes and critical loads remain unaffected by supply irregularities.
Sag vs. Brownout Event Detection
Voltage sag detection identifies short-duration reductions in voltage levels typically lasting milliseconds to seconds, often due to sudden increases in load or faults, while brownout event detection monitors prolonged, intentional or unintentional drops in voltage reducing power consumption. Advanced monitoring systems use voltage amplitude thresholds and event duration algorithms to differentiate transient sags from sustained brownouts, ensuring precise diagnosis and grid stability management.
Protection Relay Sensitivity (to sags)
Protection relay sensitivity to voltage sags is critical in distinguishing between brownouts and voltage sags, as brownouts involve prolonged voltage reductions while sags are short-duration dips. Relays with high sensitivity detect even minor voltage sags to trigger timely corrective actions, preventing equipment damage, whereas less sensitive relays may only respond to significant or sustained brownout events.
Power Quality Monitoring Analytics
Brownouts are intentional or prolonged voltage reductions causing dimming lights and decreased equipment performance, whereas voltage sags are brief, unintentional drops in voltage typically lasting milliseconds. Power quality monitoring analytics detect these events by analyzing voltage levels and duration patterns to prevent equipment damage and maintain reliable electrical supply.

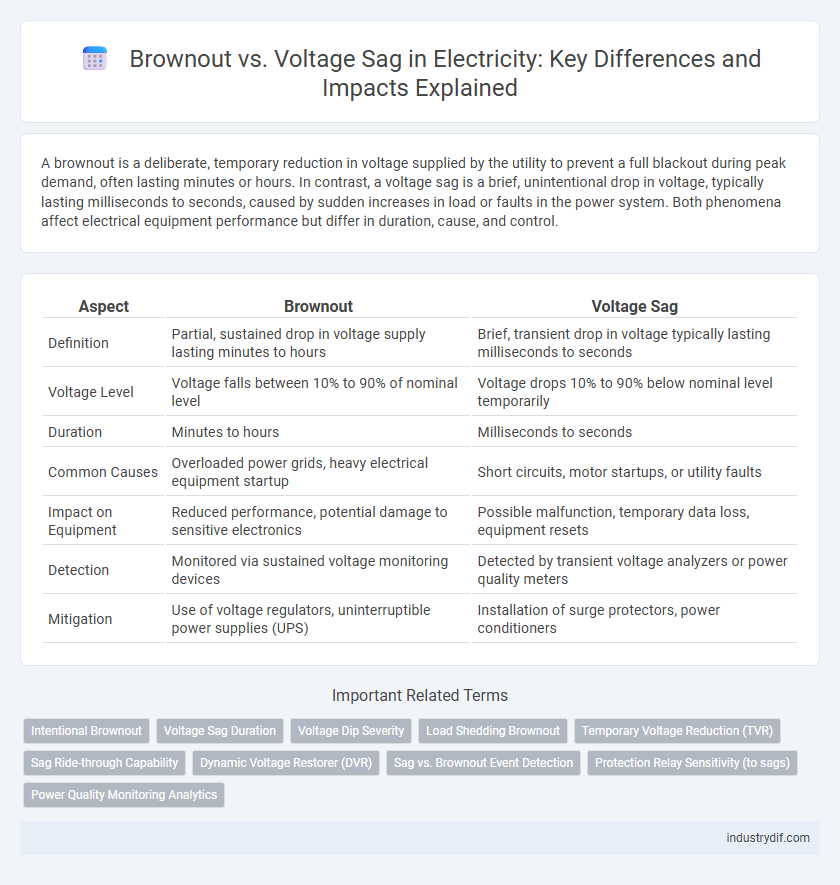

Brownout vs Voltage sag Infographic
