industrydif.com Military radar provides robust detection and tracking capabilities over long distances, using radio waves to penetrate adverse weather and detect moving targets. Synthetic aperture lidar offers higher resolution imaging by utilizing laser pulses to create detailed 3D maps, enhancing target identification and terrain analysis. Combining radar's wide-area surveillance with lidar's precision enables superior situational awareness and threat assessment in defense operations.
Table of Comparison
| Feature | Military Radar | Synthetic Aperture Lidar |
|---|---|---|
| Technology | Radio waves for object detection and tracking | Laser pulses for high-resolution surface imaging |
| Range | Long range - up to several hundred kilometers | Medium range - typically up to 10 km |
| Resolution | Lower spatial resolution, suitable for broad area surveillance | High spatial resolution, detailed terrain and target imaging |
| Weather Dependence | Operates effectively in adverse weather (rain, fog, dust) | Performance degrades in poor weather conditions |
| Applications | Air defense, target tracking, surveillance, missile guidance | Reconnaissance, terrain mapping, precision targeting, autonomous navigation |
| Stealth Detection | Effective against stealth aircraft using radar cross-section analysis | Less effective against stealth targets due to lidar's line-of-sight nature |
| Power Consumption | High power consumption depending on range and resolution | Relatively lower power, but varies with scanning density |
Introduction to Military Radar and Synthetic Aperture Lidar
Military radar systems utilize electromagnetic waves to detect, track, and identify objects over vast distances, offering all-weather, long-range situational awareness crucial for defense operations. Synthetic Aperture Lidar (SAL) employs laser pulses to generate high-resolution, three-dimensional images of terrain and targets, enhancing precision targeting and reconnaissance capabilities. Together, these technologies complement each other by combining radar's extensive coverage with SAL's detailed spatial imaging for comprehensive battlefield intelligence.
Core Principles of Radar Technology in Defense
Military radar operates by emitting radio waves that reflect off objects, enabling detection, tracking, and identification of aerial and ground threats with high accuracy. Its core principle relies on measuring the time delay and Doppler shift of reflected radio signals to calculate range, speed, and trajectory of targets, crucial for situational awareness and threat response. Unlike synthetic aperture Lidar, radar offers greater penetration through atmospheric conditions such as rain, fog, and dust, making it indispensable in diverse defense environments.
Fundamentals of Synthetic Aperture Lidar Systems
Synthetic Aperture Lidar (SAL) systems utilize coherent laser pulses combined with the platform's motion to generate high-resolution three-dimensional images of terrain and targets, surpassing traditional Military Radar's resolution limitations. SAL operates in the optical spectrum, enabling finer spatial discrimination and the ability to detect subtle surface features, critical for precise target identification and reconnaissance in complex environments. The fundamental advantage of SAL lies in its coherent processing techniques, which synthesize a larger aperture from the vehicle's displacement, achieving enhanced resolution without requiring physically large antennas typical of Military Radar systems.
Performance Metrics: Resolution and Detection Capabilities
Military radar systems excel in long-range detection with resolution capabilities typically measured in meters, enabling wide-area surveillance and target tracking in diverse weather conditions. Synthetic Aperture Lidar (SAL) offers superior spatial resolution down to centimeters, providing high-fidelity imaging and precise target identification in complex terrains. Detection capabilities of military radar prioritize range and velocity discrimination, while SAL specializes in detailed surface characterization and object recognition at shorter distances.
Environmental Adaptability: Weather and Terrain Factors
Military radar systems exhibit strong environmental adaptability by effectively penetrating fog, rain, and dust, maintaining reliable target detection across diverse weather conditions. Synthetic Aperture Lidar (SAL) provides higher spatial resolution and detailed terrain mapping but suffers from performance degradation in heavy precipitation and dense vegetation due to light scattering and absorption. Radar's longer wavelength and robust signal processing make it superior for all-weather operations in complex terrains where SAL's limited penetration restricts consistent functionality.
Stealth and Countermeasure Resistance
Military radar systems detect airborne and ground targets by emitting radio waves, but they can be vulnerable to stealth technology designed to absorb or scatter radar signals. Synthetic aperture lidar leverages laser pulses to create high-resolution, three-dimensional images, offering superior stealth detection capabilities by penetrating camouflage and electronic countermeasures more effectively than traditional radar. The distinct wavelengths and processing techniques of synthetic aperture lidar enhance resistance to jamming and signal deception, making it a valuable complement to radar in modern defense systems.
Range and Coverage Comparison
Military radar systems offer extensive range capabilities, often exceeding hundreds of kilometers, crucial for long-distance threat detection and early warning in defense operations. Synthetic Aperture Lidar (SAL) provides high-resolution imaging with precise target discrimination at shorter ranges, typically up to tens of kilometers, enhancing situational awareness in complex environments. While radar excels in broad coverage and all-weather performance, SAL complements with detailed terrain mapping and object identification, making both technologies integral to modern defense surveillance strategies.
Data Processing and Integration in Defense Operations
Military radar systems provide real-time data processing capabilities essential for tracking fast-moving targets in complex defense environments. Synthetic Aperture Lidar (SAL) offers high-resolution imaging by integrating spatial data over time, enhancing target identification and terrain mapping accuracy. Combining radar and SAL data through advanced sensor fusion techniques enables comprehensive situational awareness and more effective defense decision-making.
Cost Efficiency and Operational Maintenance
Military radar systems typically offer greater cost efficiency due to their established technology, widespread use, and lower maintenance requirements compared to synthetic aperture lidar (SAL) systems. While SAL provides higher-resolution imaging and enhanced target identification, it demands more specialized components and frequent calibration, increasing operational maintenance costs. Balancing budget constraints and operational effectiveness often leads defense organizations to prioritize radar systems for cost-effective, reliable surveillance.
Future Trends: Evolving Roles in Modern Warfare
Military radar systems continue to evolve with advancements in electronic countermeasures and enhanced target detection, maintaining critical roles in long-range surveillance and ballistic missile tracking. Synthetic aperture lidar (SAL) offers unprecedented high-resolution imaging for close reconnaissance and terrain mapping, enabling precise targeting and autonomous navigation of unmanned vehicles. Future warfare integrates both technologies, leveraging radar's all-weather capability alongside SAL's detailed spatial awareness to enhance situational intelligence and battlefield decision-making.
Related Important Terms
Multi-Function RF Systems (MFRFS)
Multi-Function RF Systems (MFRFS) integrate Military Radar and Synthetic Aperture Lidar technologies to enhance target detection, tracking, and classification across various combat environments. These systems leverage radar's long-range surveillance capabilities and Lidar's high-resolution imaging to provide comprehensive, real-time situational awareness and improved threat identification for defense operations.
Digital Beamforming Radar
Digital beamforming radar enhances military radar capabilities by electronically steering multiple beams simultaneously, providing superior target detection, tracking, and resolution compared to traditional systems. Unlike synthetic aperture lidar, which relies on optical signals and is limited by atmospheric conditions, digital beamforming radar offers robust performance in all weather, extended range, and agility essential for real-time battlefield surveillance and threat identification.
Cognitive Electronic Warfare Support (CEWS)
Military radar systems provide robust long-range detection and tracking capabilities essential for Cognitive Electronic Warfare Support (CEWS), enabling real-time adaptive threat analysis and electronic countermeasure deployment. Synthetic Aperture Lidar (SAL) enhances CEWS by delivering high-resolution spatial imaging and precise target classification through advanced signal processing and machine learning algorithms, improving situational awareness and electronic attack precision.
Passive Bistatic Radar (PBR)
Passive Bistatic Radar (PBR) leverages ambient electromagnetic signals for target detection without emitting its own radar waves, enhancing stealth and reducing vulnerability compared to traditional Military Radar systems. Unlike Synthetic Aperture Lidar, which relies on active laser pulses for high-resolution imaging, PBR offers covert surveillance capabilities critical for modern defense operations in contested environments.
Adaptive Synthetic Aperture Lidar (A-SAL)
Adaptive Synthetic Aperture Lidar (A-SAL) enhances traditional military radar by offering higher resolution imaging and improved target detection through dynamic aperture adjustment and adaptive signal processing. A-SAL enables real-time terrain mapping and stealth object identification with greater precision, surpassing conventional Synthetic Aperture Radar (SAR) capabilities in complex combat environments.
Multi-Spectral Lidar Fusion
Military radar excels in long-range target detection and tracking through radio wave reflection, while synthetic aperture lidar delivers high-resolution imaging using laser pulses. Multi-spectral lidar fusion enhances battlefield awareness by integrating diverse wavelength data, enabling improved object classification, stealth target identification, and terrain mapping under varying environmental conditions.
Coherent Change Detection (CCD) Lidar
Coherent Change Detection (CCD) Lidar offers superior resolution and sensitivity in detecting subtle ground and structural changes compared to traditional military radar systems, making it invaluable for real-time surveillance and target identification. CCD Lidar's ability to capture phase information enhances detection accuracy in cluttered environments, optimizing defense operations with precise geospatial intelligence.
Low Probability of Intercept (LPI) Waveform
Military radar systems utilizing Low Probability of Intercept (LPI) waveforms employ frequency modulation and low radar cross-section emissions to evade enemy detection, enhancing stealth capabilities in contested environments. Synthetic aperture lidar, while providing high-resolution imaging, generally lacks robust LPI techniques, making military radar the preferred choice for covert surveillance and target acquisition.
Networked Passive Radar-Lidar Integration
Networked passive radar-lidar integration enhances battlefield awareness by combining the continuous surveillance capability of military radar with the high-resolution imaging of synthetic aperture lidar, enabling precise target detection and classification in contested environments. This integrated approach leverages multisensor data fusion and real-time network connectivity to improve situational awareness, reduce electronic signatures, and increase system resilience against jamming and stealth tactics.
Ultra-Fast FMCW Lidar
Ultra-Fast FMCW Lidar offers enhanced target detection and velocity measurement capabilities compared to traditional Military Radar and Synthetic Aperture Lidar, enabling precise real-time tracking in dense battlefield environments. Its superior range resolution and Doppler sensitivity provide critical advantages for rapid threat identification and situational awareness in defense applications.

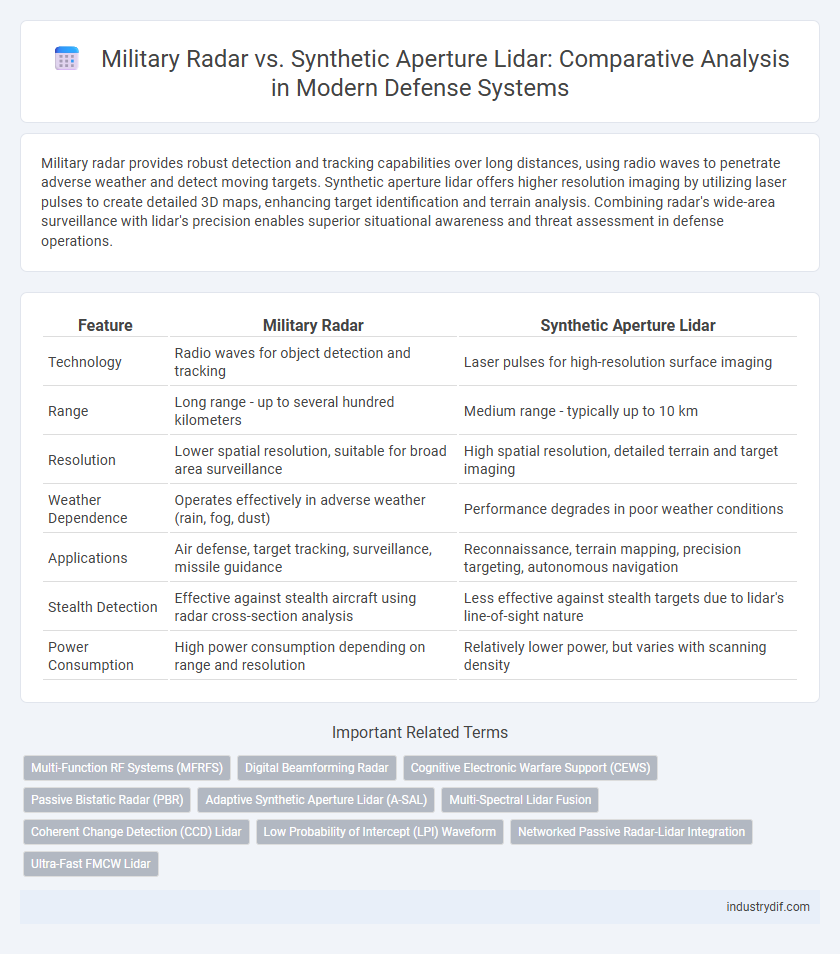

Military Radar vs Synthetic Aperture Lidar Infographic
